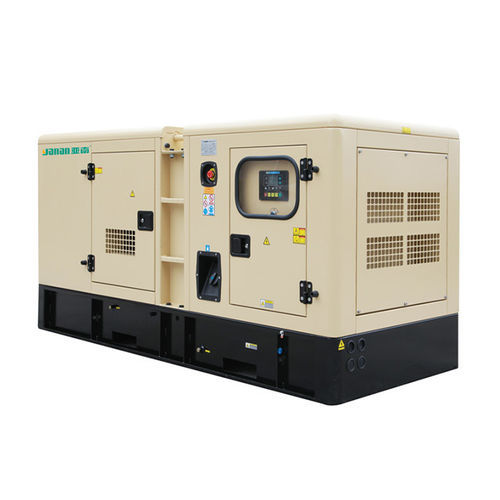

Power generation system YANAN - Ⅳ

Overview

• Corrosion-resistant construction: high-graded heavy-duty steel with powder-coat finish for enhanced corrosion protection.
• Maintenance access: large access doors; removable ducts allowing service with enclosure in place; lube oil and coolant drains piped to base frame exterior; climbing ladder for safe access.
• Security and safety: lockable control-panel door; fully enclosed exhaust silencer; ventilation sized for generator set cooling; fire-radiant insulating materials; anti-vibration pads to reduce vibration transfer.
• Transport and handling: standard lifting points; optional base feet and integrated forklift slots; optional heavy-duty trailers for transport.

Key features

• Top lifting hook
• Breaker
• Drip leak trays
• IP65-rated electrical enclosure
• File holder

Dimensions (Power ranges)
Power | Dimensions L×W×H (m)
10-100kVA | 2.3×1.1×1.29
100-200kVA | 2.8×1.1×1.47
200-300kVA | 3.8×1.3×1.85
300-500kVA | 4.2×1.5×2.1
500-800kVA | 4.8×2.1×2.28
800-1200kVA | 5.8×2.25×2.58
＞1200kVA | 20-40ft container

Notes
Specification subject to change without prior notice.

Technical specifications

• Model: YANAN - Ⅳ
• Application: Soundproof canopy / trailer for generator sets
• Power range: 10 kVA to ＞1200 kVA (various enclosure sizes)
• Construction: high-graded heavy-duty steel with powder-coat finish for corrosion resistance
• Maintenance: large doors; removable ducts; lube oil and coolant drains piped to base frame exterior; climbing ladder
• Safety: lockable control panel door; enclosed exhaust silencer; adequate ventilation; fire-radiant insulating materials; anti-vibration pads
• Transport: standard lifting points; optional base feet; optional integrated forklift slots; optional heavy-duty trailers
• Features: top lifting hook; breaker; drip leak trays; IP65 electrical box; file holder
• Dimensions: see Dimensions (Power ranges) above
