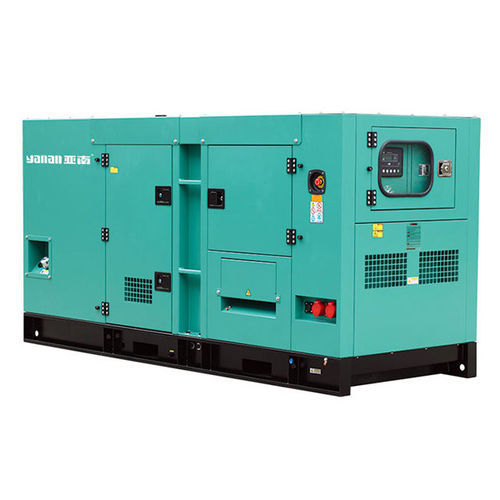

Diesel generator set YANAN - Ⅱ

containerizedstationaryindustrial

Overview

Soundproof generator canopy YANAN - Ⅱ designed for silent generator sets from 10 kVA to 1,200 kVA (container solution for >1,200 kVA). Weather‑proof enclosure with top and bottom multi‑lifting points, engineered for industrial operating environments.

Standard features

• Coverage for the full range of silent generator sets (10–1,200 kVA)
• Weather‑proof exterior suitable for harsh environments
• Multi‑lifting points at top and bottom for safe handling and transport
• Inlet and outlet duct geometry to prevent debris and dust ingestion
• Optimized inlet/outlet air system to ensure adequate ventilation
• Large capacity fuel tank enabling 12–24 hours continuous full‑load operation
• IP65 protection rating for control box and distribution box
• International standard plug connector and external terminal for safe, fast connections

Additional built-in features

• File holder
• Lubricating oil drain valve
• Receptacle
• IP65 rated electrical box
• Coolant overflow tank

Power / Dimensions
10–100 kVA : 2.3×1.1×1.29 m
100–200 kVA : 2.8×1.1×1.47 m
200–300 kVA : 3.8×1.3×1.85 m
300–500 kVA : 4.2×1.5×2.1 m
500–800 kVA : 4.8×2.1×2.28 m
800–1200 kVA : 5.8×2.25×2.58 m
>1200 kVA : 20–40 ft container

Notes

• Specifications subject to change without prior notice

Technical specifications

• Product name: YANAN - Ⅱ
• Product type: Silent / soundproof generator canopy (silent generator sets)
• Design: Weather‑proof enclosure with multi‑lifting points (top & bottom)
• Protection class: IP65 for control and distribution boxes
• Fuel tank: Large capacity (enables 12–24 hours continuous full‑load operation)
• Cooling & air system: Optimized inlet/outlet ducts to prevent debris/dust ingestion and ensure ventilation
• Electrical: International standard plug connector and external terminal for fast, safe connections
• Accessories shown in images: file holder, lubricating oil drain valve, receptacle, coolant overflow tank
• Packaging / enclosure sizes: see Power / Dimensions for per‑power‑range canopy dimensions or containerized solution for >1,200 kVA
