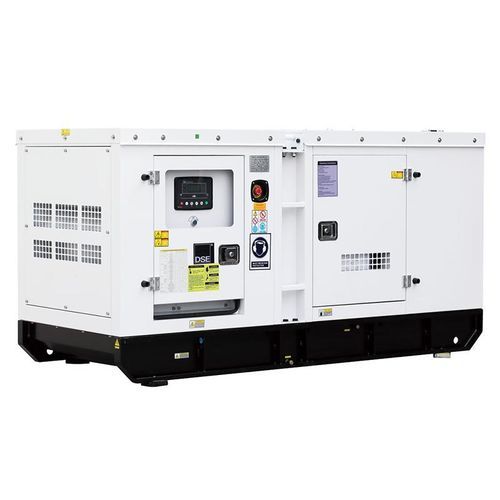

Diesel generator set YANAN - Ⅲ

single-phasecontainerizedstationary

Standard Features

• Covering full range of silent generator sets
• Weather-proof design for operation in harsh environments
• Multi-lifting points at top and bottom for handling and transport
• Inlet and outlet duct design prevents debris and dust ingress
• Optimized in/out airflow system ensures normal operation
• Large-capacity fuel tank allows 12–24 hours full-load operation without leakage
• Control box and distribution box rated IP65
• International standard plug connector and external terminal for quick, safe connections

Accessories / Small items (visual table on page)

• Door lock
• File holder
• IP65-rated electrical accessories
• Hinge
• Top lifting hook

Dimensions by Power (L×W×H m)
Power — Dimensions L×W×H (m)
10-100kVA — 2.3×1.1×1.29
100-200kVA — 2.8×1.1×1.47
200-300kVA — 3.8×1.3×1.85
300-500kVA — 4.2×1.5×2.1
500-800kVA — 4.8×2.1×2.28
800-1200kVA — 5.8×2.25×2.58
>1200kVA — 20-40ft container

Notes
★Specification subject to change without prior notice

Technical specifications

• Product name / series: YANAN - Ⅲ
• Application: Soundproof canopy / trailer for diesel generator sets
• Control box & distribution box protection: IP65
• Fuel tank: large capacity enabling 12–24 hours full-load operation; designed to prevent leakage
• Design features: weather-proof casing, dust-preventing inlet/outlet ducts, optimized airflow system
• Handling: multi-lifting points at top and bottom; top lifting hook included
• Dimensions: multiple footprints depending on rated power (see Dimensions by Power)
• Connectivity: international standard plug connector and external terminal for rapid, safe operation
