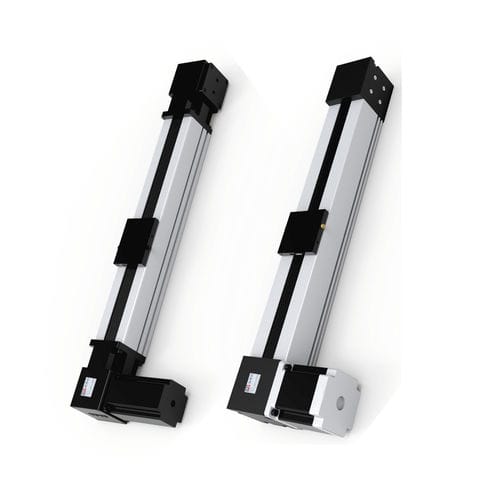

Belt-drive linear module FBL Series
aluminum profilemulti-axis

Belt-drive linear module - FBL Series - FUYU Technology - aluminum profile / multi-axis
Belt-drive linear module - FBL Series - FUYU Technology - aluminum profile / multi-axis
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
belt-drive
Features
aluminum profile
Number of axes
multi-axis
Stroke

Max.: 12,000 mm
(472.441 in)

Min.: 100 mm
(3.937 in)

Linear speed

Max.: 3,000 mm/s

Min.: 500 mm/s

Description

FBL Series Linear Module | High-Speed, Long-Range, and Lightweight Design The FBL Series Linear Module, driven by a synchronous belt, is the perfect solution for achieving long travel distances and wide-ranging applications. Built with an aluminum structure, it offers exceptional performance with a maximum stroke of over 12 meters and speeds of up to 3m/s, making it an ideal choice for high-speed, long-range operations. Key Features Synchronous Belt Drive Enables smooth, high-speed performance and supports extended travel distances for large-scale applications. Lightweight Aluminum Structure Ensures durability while maintaining a lightweight design for easy integration and efficient operation. Exceptional Speed and Precision Handles speeds up to 3000mm/s with a repeatability accuracy of ±0.05mm, ensuring reliable and precise performance. Extensive Stroke Range Supports strokes from 100mm to 12,000mm, offering unparalleled versatility for various industrial tasks. Applications Ideal for industries requiring long-distance, high-speed linear motion, including packaging, material handling, and automated production systems. Choose the FBL Series Linear Module for reliable, fast, and efficient automation tailored to your needs.

VIDEO

Other FUYU Technology products

Belt Driven Linear Module
