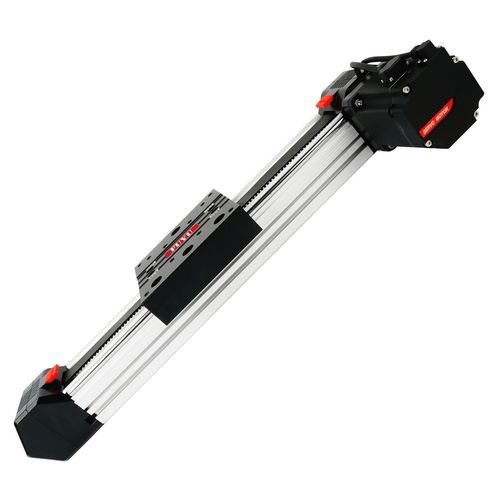

Belt-drive linear module FPB80

guided1-axismodular

High-performance belt-driven linear actuator FPB80 with 700W servo motor, engineered for long-stroke, high-speed and heavy-load positioning in industrial automation and Cartesian robot applications.

Applications & components

• Drive: 700W servo motor with belt-driven linear guide (optionally available with ball-screw module).
• Typical uses: Cartesian robots, positioning stages, assembly lines, vision inspection systems and test equipment.
• Available modules: ball-screw module, belt-driven linear guide, positioning stage, motion controller, driver and power supply.
• Commercial notes: ready-to-ship variants available; quantity pricing from 10 pcs; OEM and custom design, programming and integration services supported.

Key performance

• Stroke range: 100 mm – 3900 mm.
• Positioning accuracy: 0.05 mm.
• Maximum speed: up to 1500 mm/s (typical operation reference 1000 mm/s depending on configuration).
• Maximum load capacity: 40 kg.
• Slider (carriage) height: 41 mm to minimize installation envelope.
• Operating noise: low-frequency noise ≤65 dB.
• Service life: stated up to 6000 km / >860,000 round trips (dependent on duty cycle and conditions).

Technical specifications & certifications

• Series: FPB80.
• Stroke range: 100–3900 mm.
• Position accuracy: 0.05 mm.
• Max speed: 1500 mm/s (nominal 1000 mm/s operational reference).
• Max load: 40 kg.
• Slider height: 41 mm.
• Operating noise: ≤65 dB.
• Service life: up to 6000 km / >860,000 cycles (manufacturer statement).
• Certifications: CE, FCC, RoHS, ISO9001.
• Options: motion controller, driver, power supply and OEM customization.
