Belt-drive linear module FBL80

guidedfor welding applications

Overview

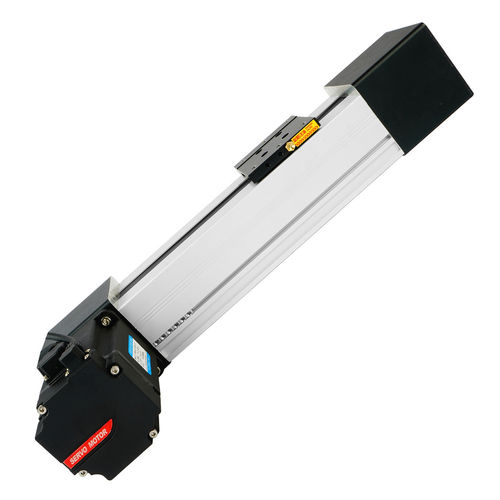

Belt-driven linear actuator series FBL80 combining a fully sealed 80 mm linear guide with a long-stroke, high-speed belt transmission and an integrated or optional stepper motor. Designed for precise linear positioning in dust-prone or harsh industrial environments where extended service life is required.

Key features

• FBL80 fully sealed linear guide (80 mm body width) providing dust-proof protection and reliable operation in contaminated environments.
• Large stroke capability with minimal compression and structural resistance to hard-object collisions without deformation.
• High resistance to oils and elevated temperatures to extend service intervals in demanding conditions.
• Belt-driven transmission with synchronous pulley (circumference 165 mm) for high-speed linear motion and smooth acceleration up to 1500 mm/s.
• Available with integrated or standalone stepper motor for controlled positioning; position repeatability 0.05 mm.

Application areas

• Automatic dispensing and spray systems
• Welding, packaging and material handling equipment
• Printing and laser carrier systems
• Photovoltaic back-sheet cutting and trimming machines
• Conveying robots and auxiliary automation modules
• Time-lapse imaging rigs and laboratory test setups
• Various industrial automation production lines

Technical specifications

• Series: FBL80
• Stroke range: 100 mm – 3900 mm
• Position accuracy (repeatability): 0.05 mm
• Maximum speed: 1500 mm/s
• Maximum load: 50 kg
• Synchronous pulley circumference: 165 mm

Options & integration

• Motor options: integrated stepper motor or motorless for external drives
• Standard mounting interfaces for direct integration into automation frames
• Compatible with common stepper controllers and encoder feedback systems on request
• Custom stroke lengths, end-of-travel sensors and mounting brackets available
