Overview

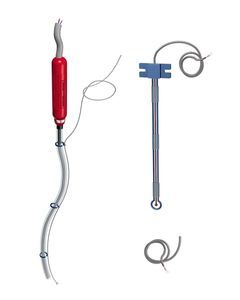

Galvatek’s TF temperature probes, incorporating PT100 sensors, offer precise and reliable measurement for the regulation and monitoring of liquid temperatures in demanding industrial environments. Available with a rigid tube or a flexible sheath made from highly resistant materials, they adapt to varied thermal process requirements.

Technical Specifications

• Sensor: 4-wire PT100 for optimum accuracy.
• Available configurations:
  • Rigid sheath in stainless steel, PP, PVDF or PTFE.
  • Flexible PFA sheath for restricted or corrosive environments.
• Standard lengths:
  • Rigid sheath: 300, 500 or 800 mm (other lengths available).
  • Flexible sheath: standard length 1.6 m (other lengths possible).
• Temperature range: up to 200°C depending on model.
• Compatibility: Suitable for 2-, 3- or 4-wire connection systems to compensate for parasitic resistances.

Key Benefits

• High accuracy: 4-wire PT100 sensors reduce interference for stable measurement.
• Chemical resistance: Materials such as PTFE and PVDF for aggressive environments.
• Adaptability: Available in rigid or flexible versions to meet installation requirements.
• Easy maintenance: Sensors can be replaced in the sleeve to extend service life.

Main Applications

• Chemical industry: precise temperature control in tanks.
• Electroplating: monitor baths to prevent freezing, crystallization or overheating.
• Water treatment: thermal control in treatment circuits.
• Pharmaceutical sectors: environments requiring high precision and chemical resistance.

Safety and Compliance

• Conforms to DIN EN 60751 specifications for PT100 sensors.
• Robust design resistant to aggressive chemical environments and high temperatures.
• Designed for consistent performance in extreme conditions.

Options and Accessories

• Assembly Key SB for BC Head — universal key for mounting.
• SL Mounting Key for LC Head — for opening LC terminal box and cable gland.
• LC Terminal Box — red head (PP) or white head (PVDF) options for electrical termination.
• BC Terminal Box — terminal box for BC head (PP or PVDF head materials available).
• HM Mounting Sleeve for BC Head — secures immersion heater in tank cross-members; bore diameter 70–76 mm; material EPDM.
• ML Mounting Sleeve for LC Head — allows installation in confined spaces on tank crossbeams; bore diameter 63 mm; material EPDM.
• EM Mounting Sleeve for BC Head — reduced footprint installation; bore diameter 87–90 mm; material EPDM.
• HL Support for LC Head — fixed by screws on tank rim; material PP.
• HB Support for BC Head — support for immersion heaters with max immersion tube length of 800 mm; material PP.

Characteristics / technical specifications

• Sensor: 4-wire PT100.
• Sheath types: rigid (stainless steel, PP, PVDF, PTFE) or flexible (PFA).
• Rigid lengths: 300, 500, 800 mm (other lengths available).
• Flexible standard length: 1.6 m (other lengths possible).
• Temperature range: up to 200°C (model-dependent).
• Connection compatibility: 2-, 3- or 4-wire systems.
• Standards: DIN EN 60751 for PT100 sensors.
