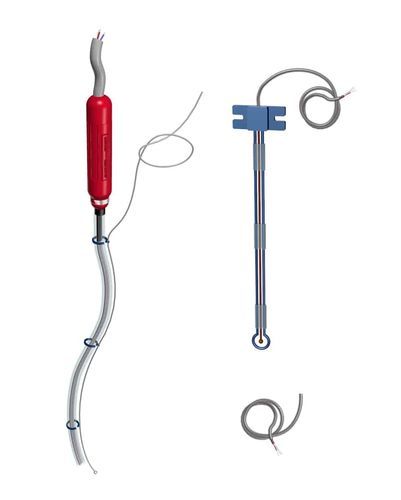

Pt100 temperature sensor SOPT et SOTC

type J thermocoupleimmersionbare wires

Overview Galvatek’s SOPT and SOTC temperature probes provide accurate, reliable measurement of liquid temperatures in demanding industrial environments. Constructed with PFA fluoropolymer sheathing, they combine chemical resistance with multiple mounting options to fit specific installation needs.

Technical Specifications

• Probe types:
  • SOPT: PT100 probe, 2 or 3 wires, 0°C class B, fluoropolymer (PFA) sheathed with sealed end.
  • SOTC: Type J thermocouple probe, hot-solder insulated, fluoropolymer (PFA) sheath.
• Materials: PFA (fluoropolymer) sheath for excellent chemical resistance.
• Available configurations:
  • S mounting: Flexible PFA-sheathed probe, standard length 1.5 m, customizable up to 20 m.
  • T mounting: Flexible probe mounted on immersion heater, compatible with cable glands.
  • Installation B: Rigid bendable probe with PP or PVDF-coated armature, maximum rigid length 2 m.
• Applications: Precise temperature measurement in corrosive liquid environments.

Key Benefits

• Flexible installation options: selectable mountings (flexible, rigid, immersion heater-mounted) to suit piping and vessel interfaces.
• Measurement accuracy: PT100 Class B and Type J thermocouple compliance for dependable readings.
• Customizable lengths: flexible probes available up to 20 m as standard options.
• Chemical durability: PFA sheath resists aggressive media for extended service life.

Main Applications

• Chemical industry: thermal monitoring of reactors and storage tanks.
• Water treatment: temperature measurement in treatment circuits and process lines.
• Food industry: temperature control in processes requiring stable, traceable measurements.
• General industrial use: compatible with various thermal control and monitoring systems.

Safety and Compliance

• Standards: complies with PT100 Class B and Type J thermocouple specifications.
• Chemical resistance: PFA materials provide resistance to corrosive substances commonly found in process fluids.
• Reliability: design ensures consistent performance in demanding conditions.

Technical characteristics / specifications

• Family: SOPT (PT100) and SOTC (Type J) probes.
• SOPT: PT100 sensor, 2- or 3-wire connection, 0°C Class B accuracy, PFA sealed sheath.
• SOTC: Type J thermocouple, hot-solder insulated, PFA sheath.
• Sheath material: PFA (fluoropolymer).
• Flexible standard length (S mounting): 1.5 m; customizable up to 20 m for flexible probes.
• Rigid/Installation B: bendable rigid probe with PP or PVDF-coated armature, max rigid length 2 m.
• Mounting options: S (flexible), T (immersion heater-mounted), Installation B (rigid).
• Typical applications: corrosive liquids, reactors, tanks, water treatment, food industry.
• Documentation: technical datasheet available (PDF).
