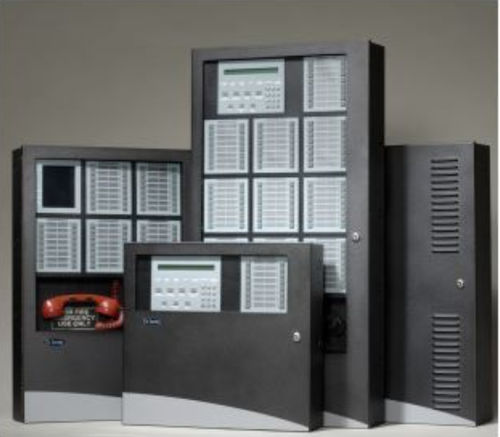

Fire alarm control panel E3 Series

The E3 Series® Expandable Emergency Evacuation System by Gamewell-FCI offers several cabinet size options. The E3 Series System is a modular design that allows a wide range of configurations to form an integrated, distributed fire alarm system. These cabinet options allow for sturdy and modern installations. The E3 Series cabinet assembly is a compact, wall-mounted enclosure. A typical cabinet includes a back box and an outer locking door. In addition, there are several inner door options and mounting plates to accommodate a variety of E3 Series sub-assemblies. Each cabinet back box includes mounting patterns for plates to allow the installer to arrange and secure the sub-assemblies to the back box. The back box knockouts are also positioned at numerous points to allow a conduit access into the enclosure Features & Benefits: IBC Seismic Certified 16-gauge steel back box Offers cabinets available in either black or red Provides removable cabinet outer and inner doors Includes an inner door bonding strap used to provide electrical continuity for grounding Furnished back box and door ground studs provide positive grounding. 180° opening door with full clearance Designed with a 90° opening door with zero clearance Contains a key lock with a quarter turn latch Optional Trim Ring accessories available Certifications: UL Listed: S1869 ULS 864, 10th Edition UL 2572, 2nd Edition MEA Approved: 6177 MEA FDNY: COA# 6077 CSFM: 7165-1703-0125 FM Approved: 3025415
