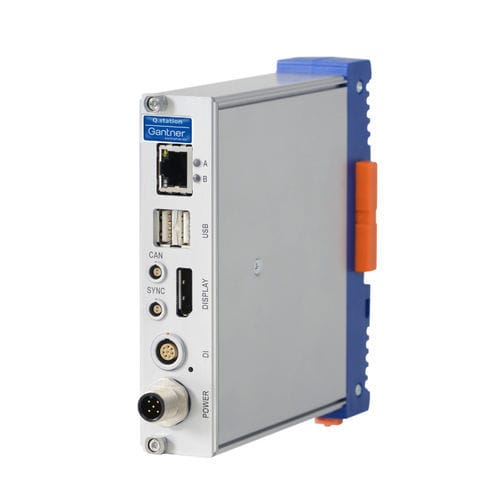

Ethernet programmable controller Q.station XBRS485Modbus TCPwith data logger
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Network
- RS485, Modbus TCP, Ethernet
- Other characteristics
- with data logger, multi-channel
Description
Very high data rates up to 100 kHz each channel
100 kHz at 16 channels (4 each UART line), 10 kHz at 128 channels
64 Q.bloxx modules connectable
Ethernet interface for configuration and data output
1 Gig-E, TCP/IP, UDP, up to 16 MB/s Modbus TCP/IP, ASCII, High Speed Port Web server, web client and e-mail
Synchronization and time stamp of measurement values
IRIG 2 based master-slave principle on RS485 standard system synchronization ±1 μs applicable
Data buffer memory dyn. 500 MByte, stat. 4 GByte
expandable over USB (up to 1,000,000 measurements/s) and SD card
6 digital inputs
direct connection of encoder for angular position, PWM, counter and status signals.
