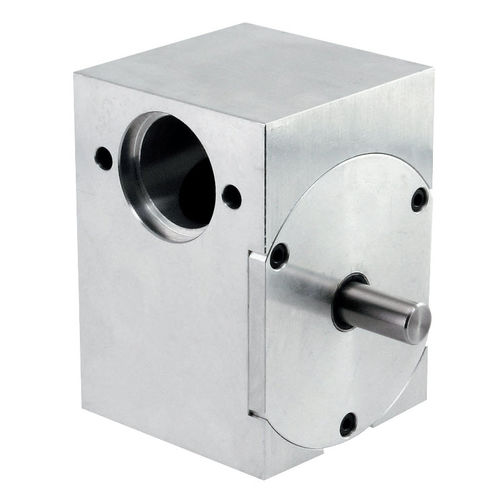

Worm gear reducer S 668
right angle1 - 5 Nm10 - 20 Nm

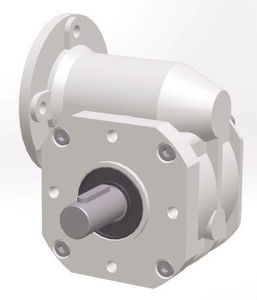

worm gear reducer
worm gear reducer
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Torque
1 - 5 Nm, 10 - 20 Nm, 5 - 10 Nm
Number of stages
single-stage
Other characteristics
aluminum, for motors
Rotational speed

4,500 rpm
(28,274.33 rad.min-1)

Gear ratio

Min.: 2.5 unit

Max.: 100 unit

Description

General: Single-stage worm gear for use in combination with our motors. Special design as a free-standing gear unit with ball-bearing ingoing shaft. Lifetime grease lubrication Housing: Massive aluminum, mounting possibilities from all accessible sides Output: Power deviation 90°, 2nd shaft end possible. Self locking on higher gear reduction (η < 50%) Options: Special shaft, second shaft end
