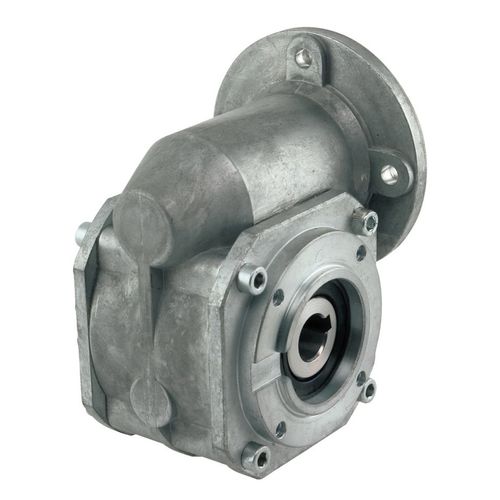

Worm gear reducer SC 401 Hright anglehollow-shaft20 - 50 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft
- Torque
- 20 - 50 Nm
- Number of stages
- single-stage
- Other characteristics
- for motors
- Rotational speed
4,500 rpm
(28,274.33 rad.min-1)- Gear ratio
Max.: 80 unit
Min.: 6.8 unit
Description
General: Single-stage worm gear for use in combination with our motors. Lifetime grease lubrication
Housing: Zinc diecast. Mounting on the drive side
Output: Power deviation 90°, second shaft end possible. Self locking on higher gear reduction (η < 50%). Ball bearing. Hollow shaft Ø 14 H 7 (Ø max.20 mm)
