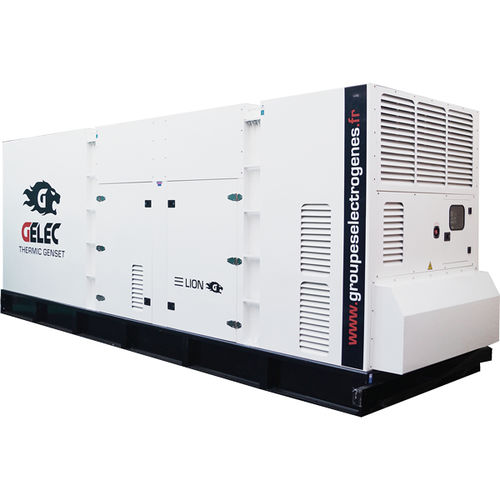

three-phase generator set / diesel / stationary / 50 Hz
LION-1100YCE3

{{requestButtons}}

Characteristics

  • Phase:

    three-phase

  • Motor type:

    diesel

  • Portability:

    stationary

  • Frequency:

    50 Hz

  • Applications:

    emergency, industrial, for construction sites, for military applications, for telecom applications, for railway applications, for mining

  • Rotational speed:

    1,500 rpm (9,425 rad.min-1)

  • Power in kVA:

    800 kVA, 1,000 kVA (1,087.7 hp)

Description

SPECIFICATIONS
ESP Power 1100 kVA
PRP Power 1000 kVA
Rotation speed 1500 rpm
Fuel tank capacity 1000 Liters
Number of cylinders 6
Autostart optional
Available in Three Phase 1445,1 A

PRODUCT INFORMATION
GENERAL DATAS :

PRP : Prime Rated Power : 1000 kVA / 800 kW
ESP : Emergency Standby Power : 1100 kVA / 888 kW
Voltage : 230-400V
Power factor : 0.8 (cosΦ)
Rotation speed : 1500 rpm
Number of phases : 3
Frequency : 50 Hz
Fuel tank autonomy at 75% : 7 hours

Engine specifications :

Number of cylinders : 6
Governor type : electronic
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 39,584 L
Maximum standby power at rated rotation 1500tr/min : 880 kW
Maximum standby power at rated rotation 1500tr/min : 1197 Cv
Compression ratio : 14,5:1
Engine starting type : electrical 24V
Air inlet system : Turbocompressed-intercooler

Alternator specifications :

Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic

This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches and with a DEEPSEA control panel. An automatic transfer switch system can be added.
