three-phase generator set / diesel / stationary / 50 Hz

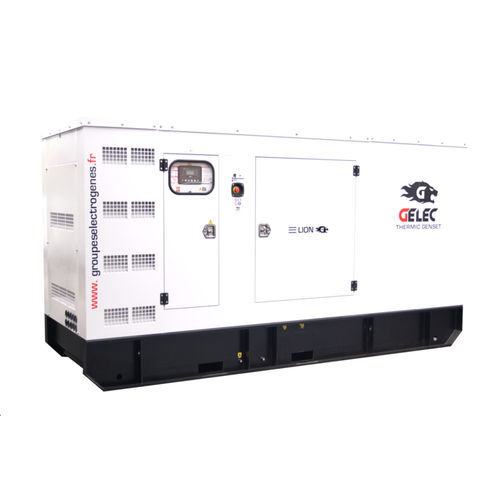

LION-620YC

Add to MyDirectIndustry favorites
Compare this product
three-phase generator set / diesel / stationary / 50 Hz three-phase generator set / diesel / stationary / 50 Hz - LION-620YC
{{requestButtons}}

Characteristics

  • Phase:

    three-phase

  • Motor type:

    diesel

  • Portability:

    stationary

  • Frequency:

    50 Hz

  • Options and accessories:

    with cover

  • Cooling system:

    water-cooled

  • Applications:

    emergency, industrial, for construction sites, for military applications, for telecom applications, for railway applications, for mining

  • Rotational speed:

    1,500 rpm (9,425 rad.min-1)

  • Power in kVA:

    450 kW, 563 kW (611.83 hp)

Description

SPECIFICATIONS
ESP Power 619 kVA
PRP Power 563 kVA
Rotation speed 1500 rpm
Fuel tank capacity 1210 Litres
Number of cylinders 6
Autostart optional
Available in Three Phase813,6 A

PRODUCT INFORMATION
GENERAL DATAS :

PRP : Prime Rated Power : 563 kVA / 450 kW
ESP : Emergency Standby Power : 619 kVA / 495 kW
Voltage : 230-400V
Power factor : 0.8 (cosΦ)
Rotation speed : 1500 rpm
Number of phases : 3
Frequency : 50 Hz

Engine specifications :

Number of cylinders : 6
Governor type : electronic
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 19,60 L
Maximum standby power at rated rotation 1500tr/min : 572 kW
Maximum standby power at rated rotation 1500tr/min : 778 Cv
Compression ratio : 14:01
Engine starting type : electrical 24V
Air inlet system : Turbocompressed-intercooler

Alternator specifications :

Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic
