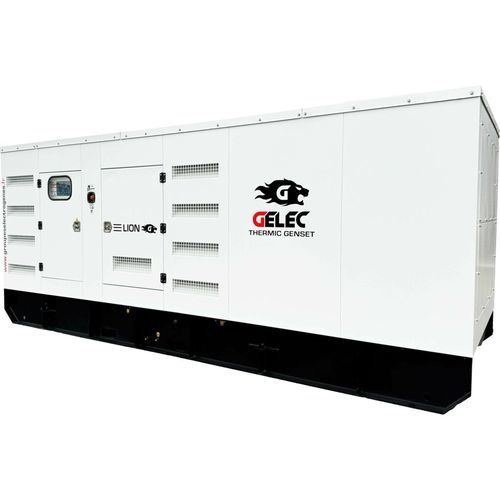

three-phase generator set / diesel / stationary / 50 Hz
LION-750YCE3

Add to MyDirectIndustry favorites
Compare this product
three-phase generator set / diesel / stationary / 50 Hz three-phase generator set / diesel / stationary / 50 Hz - LION-750YCE3
{{requestButtons}}

Characteristics

  • Phase:

    three-phase

  • Motor type:

    diesel

  • Portability:

    stationary

  • Frequency:

    50 Hz

  • Options and accessories:

    soundproofed

  • Applications:

    emergency, industrial, for construction sites, for military applications, for telecom applications, for railway applications, for mining

  • Rotational speed:

    1,500 rpm (9,425 rad.min-1)

  • Power in kVA:

    550 kVA, 688 kVA (747.79 hp)

Description

SPECIFICATIONS
ESP Power750 kVA
PRP Power688 kVA
Rotation speed1500 rpm
Fuel tank capacity1400 L
Number of cylinders6
Autostartoptional
Available in Three Phase1080 A

PRODUCT INFORMATION
Descriptif technique Général :

PRP : Prime Rated Power : 750 kVA / 600 kW
ESP : Emergency Standby Power : 825 kVA / 660 kW
Voltage : 230-400V
Power factor : 0.8 (cosΦ)
Rotation speed : 1500 rpm
Number of phases : 3
Frequency : 50 Hz
Fuel tank autonomy at 75% : 9 heures

Engine specifications :

Number of cylinders : 6
Governor type : electronic
Displacement : 19,6 L
Maximum standby power at rated rotation 1500tr/min : 665 kW
Engine starting type : electrical 24V
Air inlet system : Turbocompressed-intercooler

Alternator specifications :

AVR : Stamford
Voltage regulation type : electronic
