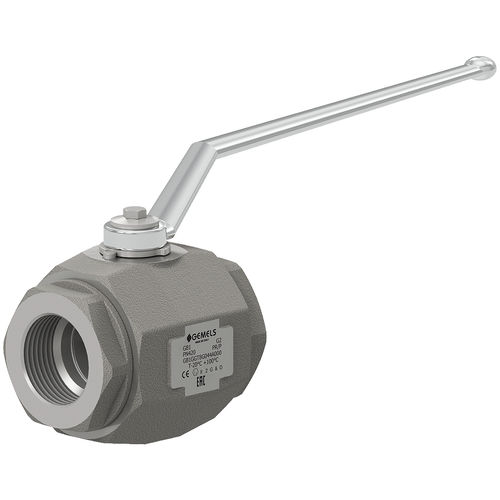

Ball valve GB1leverfor controlfor fire extinguishers
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Function
- for control
- Applications
- for fire extinguishers, for fire safety applications, for heavy-duty applications
- Number of channels
- 2-way
- DN
Max.: 50 mm
(1.969 in)Min.: 32 mm
(1.26 in)- Temperature
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)
Description
This Industrial valve is a ball valve GB 2-way type characterized bya round body. Ball seats measure from DN32 to DN50 with O-rings in NBR, FKM, EPDM and MVQ. This ball valve works with an operating pressure of 350 bar, depending on valve size and seal material. The temperature range of this valve ranges from -20°C to +100°C, depending on seal material selected.
