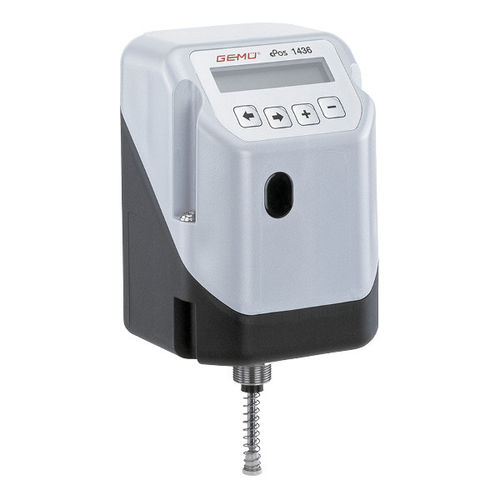

Smart valve positioner 1436 cPos
electro-pneumaticquarter-turnlinear

smart valve positioner
smart valve positioner
Add to favorites
Compare this product


Characteristics

Type
electro-pneumatic
Movement
quarter-turn, linear
Configuration
double-acting, single-acting
Protection class
IP65
Other characteristics
digital, smart, rugged, NAMUR, DC
Voltage

24 V

Pressure

Min.: 2 bar
(29 psi)

Max.: 7 bar
(101.5 psi)

Ambient temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Rotation angle

90 °

Weight

600 g
(21.16 oz)

Description

The GEMÜ 1436 cPos is a digital electro-pneumatic positioner with optionally integrated process controller for the control of pneumatically operated process valves. When using the optional process controller the signals from a process sensor (e.g. flow, level, pressure, temperature) are detected and the media adjusted according to the specified set value. The positioner has a solid housing with protected operating buttons and a LC display.-Digital inputs (option) for variable function control for automation -Fieldbus interfaces e.g. Profibus DP, DeviceNet (option) -No air consumption when idle -Simple mounting to various valve actuators -Access rights via different user levels -High flow rates Flow rate:150 l/min | 200 l/min | 300 l/min Electrical connection types:M12 connector Communication modes:DeviceNet | Profibus | ProfiNet | Without Conformity:EAC
