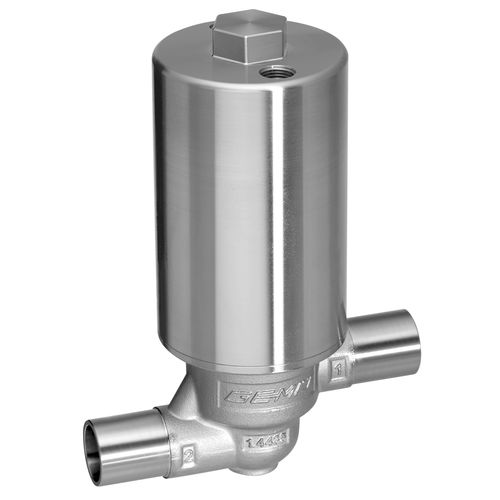

Diaphragm valve F40
pneumatically-operatedinoxfor industrial applications

diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatically-operated
Body
inox
Applications
for industrial applications, for process applications, for liquids, for hygienic applications
Number of channels
2/2-way
Associated function
filling
Other characteristics
compact, normally closed, normally open, aseptic
DN

Max.: 25 mm (0.984 in)

Min.: 8 mm (0.315 in)

Pressure

Max.: 7 bar (101.5 psi)

Min.: 0 bar (0 psi)

Temperature

Max.: 140 °C (284 °F)

Min.: -10 °C (14 °F)

Flow rate

Max.: 6,600 l/h (1,744 us gal/h)

Min.: 0 l/h (0 us gal/h)

Description

The GEMÜ F40 2/2-way filling valve is designed for filling processes in aseptic and hygienic areas of application. Flow rates up to 6,600 l/h are possible depending on the version. The sealing concept of the valve is based on the GEMÜ PD design, whereby the actuator is hermetically separated from the medium. All actuator parts (except seals) are made from stainless steel. The filling valve is available in pneumatic design F40 (and electrical design F60). The pneumatic version is available with Normally closed and Normally open control functions. -Hermetic separation between medium and actuator due to PD sealing technology - High switching cycles (over 10 million) - No "lift effect" thanks to using the GEMÜ PD design - Customised block construction possible - Designed according to Hygienic Design guidelines - Compact design - High Kv value - CIP/SIP capable and autoclave-capable - FDA compliant as standard and suitable for contact with food according to Regulation (EC) No. 1935/2004 Very fast and easy maintenance thanks to quick locking system and innovative cartridge spare parts system Connection types:Clamp | Spigot Connection standards:ASME | DIN | EN Body materials:1.4435 (316L), block material | 1.4435, investment casting material Seat seal materials:PTFE Conformities:3A | ATEX | EAC | FDA | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | USP
