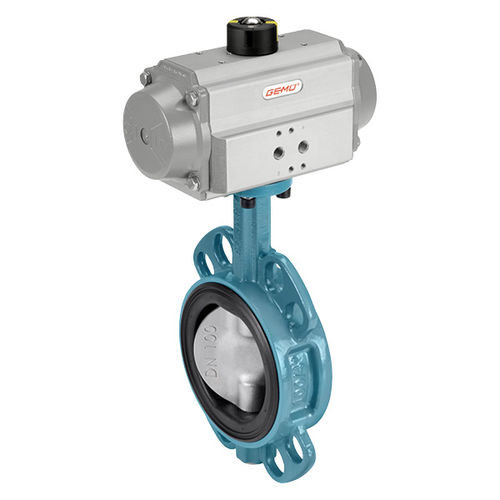

Butterfly valve R481pneumaticfor controlwafer
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic
- Function
- for control
- Body
- wafer, lug type
- Material
- stainless steel, PTFE, EPDM, iron, rubber, NBR, epoxy
- Other characteristics
- ISO, DIN, normally closed, double-acting, normally open, rugged, ATEX
- DN
Min.: 50 mm
(1.969 in)Max.: 300 mm
(11.811 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 16 bar
(232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 160 °C
(320 °F)
Description
Soft-sealing, centrally mounted butterfly valve
The GEMÜ R481 Victoria soft seated metal butterfly valve has a metal actuator and is pneumatically operated. Normally Closed, Normally Open and Double Acting control functions are available. Various pneumatic actuators are available. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
The GEMÜ R481 Victoria soft seated metal butterfly valve has a metal actuator and is pneumatically operated. Normally Closed, Normally Open and Double Acting control functions are available. Various pneumatic actuators are available. The butterfly valve is available in nominal sizes DN 25 to 600 and in standard installation lengths ISO 5752/20 | EN 558-1/20 | API 609 category A (DIN 3202 K1) in wafer, lug and U section body versions.
- Low torques thanks to PTFE coated bushes
- Bubble tight sealing acc. to EN 12266-1/P12, leakage rate A
- Liner material is easy to read when installed
- Sleek disc design for higher Kv values
- Robust body coating comparable to ISO 12944-6 C5
- Various actuator types can be selected
- Optional accessories are installed, set and tested so they are ready for operation
