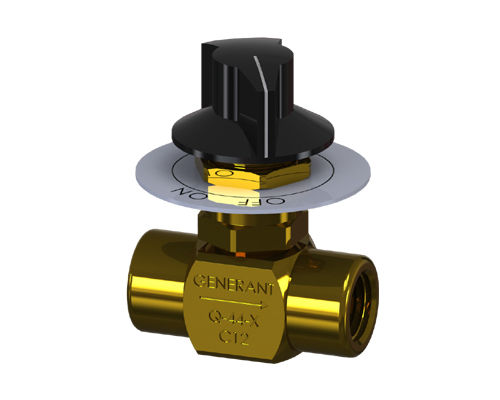

Ball valve 4000 series
for oxygenin-linebrass

ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Media
for oxygen
Body
in-line, brass
Number of channels
3-way, 2-way
Other characteristics
compact
Pressure

Max.: 125 psi

Min.: 0 psi

Temperature

Max.: 149 °C
(300 °F)

Min.: -29 °C
(-20 °F)

Description

The Series 4000 Quick Opening Valve functions as in-line on-off switch particularly suited to applications in Instrumentation and Control Panels to open and close circuits or isolate gauges. The unique design of these valves permits full-closed to full-open operation quickly with a 60° turn of the knob. Standard units will detent in the selected position or, if desired, can be spring loaded (Option R) to return to the off position when released. The Series 4000 is offered in 2-way and 3-way designs. The 2-way design is a snap action on-off control, while the 3-way design offers the same snap on-off action while venting the downstream pressure to atmosphere when in the off position. These valves are compact in size and can be utilized for in-line and panel mount applications. Valves can be ordered Cleaned and Packaged for Oxygen service.
