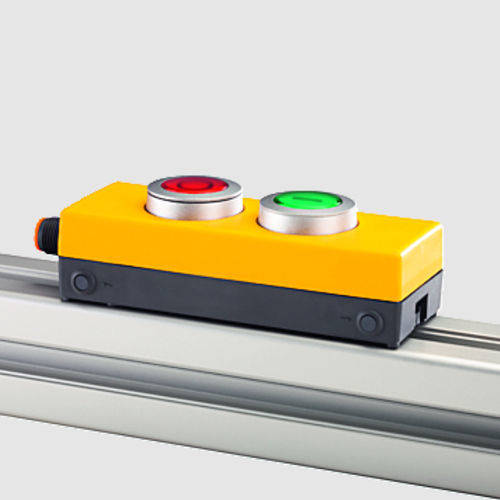

2-button pendant station MBM128_TLITLO

IP65plastic

CategoryEquipped insulated plastic enclosures Seriesminibox Degree of protectionIP65 Illuminationyes With labelling optionyes Colourdark-grey bottom part/yellow cover Contact materialAgNi, gold-plated Equippedyes Lenses and nameplates to be ordered separately. Operating temperature: -25 °C...+70 °C Storage temperature: -25°C...+85 °C Pushbutton type: 1 NO and 1 NC (positive opening) Fixation: with fastening clip on the rear Connection: M12 8 poles (m) Pos.1 (pushbutton) NO, pin 1-2; lamp, pin 3-4; Pos.2 (pushbutton); NC, pin 5-6; lamp, pin 7-8 Contact material: AgNi, gold-plated 5µm Electrical life: 1 million at rated load (ambient temp. = 20°C) Mechanical life: 1 million operations (ambient temp. = 20°C) Positive opening: NC contact acc. to EN 60947-5-1, appendix K Test voltage M12 plug: 1.5 kV Electrical Data Operating voltage: 1V... 36V Operating current: 1mA ... 250mA LED iillumination: max. 30 V AC/DC, typ. 4 mA (at 24 V DC)
