- Electricity - Electronics
- Switch and Relay
- Emergency stop push-button switch
- Georg Schlegel GmbH & Co. KG

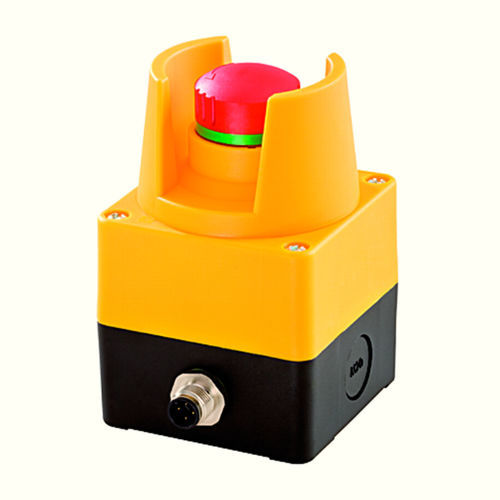

Emergency stop push-button switch SIL_QRSKUVOOIM12insulatedIP65plastic
Add to favorites
Compare this product
Characteristics
- Type
- emergency stop
- Protection level
- insulated, IP65
- Other characteristics
- plastic
Description
CategoryEquipped insulated plastic enclosures
SeriesSIL
Degree of protectionIP65
Illuminationno
With labelling optionno
Contact equipment2 NC + 1 NO
Colourdark-grey bottom part/yellow cover
Cable entry8-pole M12, A coded
Anti-lock collaryes
Permissive contactno
Releasetwist right or left
Switching position indicatoryes
Foolproofyes
Equippedyes
with switching position indicator and yellow collar, twist release, acc. to EN ISO 13850, VDE 0660, sect.200, IEC/EN 60947-5-1 and IEC/EN 60947-5-5 for technical data on the appropriate contact blocks refer to previous page mounting hole dia. 4.2 mm
Catalogs
Emergency-Stop Buttons Overview
21 Pages
Product Catalogue
741 Pages
