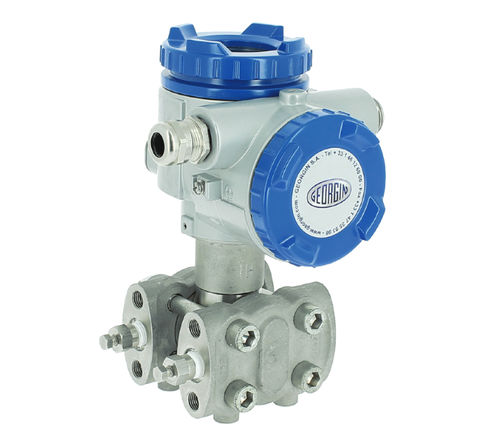

Differential pressure transmitter FKC series
membraneHARTModbus

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
membrane
Output signal
HART, Modbus, Fieldbus, PROFIBUS
Mounting
flange
Other characteristics
stainless steel, process, smart, explosion-proof, intrinsically safe
Process temperature

Max.: 120 °C (248 °F)

Min.: -40 °C (-40 °F)

Pressure range

Max.: 20,000,000 Pa (2,900.75 psi)

Min.: 100 Pa (0.01 psi)

Description

SMART Transmitter 4-20mA + HART protocol Span limits : 0.1 KPa to 20000KPa Rangeability : 100:1 Accuracy : 0.065% (0.04% as an option) Power supply 10.5 to 45VDC Process wetted parts material : Inox 316L, Hastelloy, Monel, Tantalum, … Process connection : ¼”-18NPT (oval flanges on request) Burnout according NAMUR NE43 recommandations Long term stability : +/- 0.1% of maximum span / 10years Options: » Local analog or digital Indicator » Intrinsically safe version » Explosion proof version » FM, CSA and IECEX certification » Stainless Steel electronic housing The ProcessX differential pressure (flow) transmitter ac-curately measures differential pressure, liquid level, gauge pressure or flow rate and transmits a proportional 4 to 20 mA signal.The transmitter utilizes a unique micro machined capaci-tance silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and func-tionality. 1. High accuracy up to ±0.04% 0.065% accuracy as standard. Georgin’s micro-capacitance silicon sensor assures this accuracy for all elevated or suppressed calibration ranges without additional adjustment. 0.04% accuracy as option 2. minimum inventOry and design Electronics unit, local indicators and electronics hous-ing are interchageable among all ProcessX transmitters. 3. minimum envirOnmental inFluence The “Advanced Floating Cell” design which protects the pressure sensor against changes in temperature, static pressure, and overpressure substantially reduces total measurement error in actual field applications
