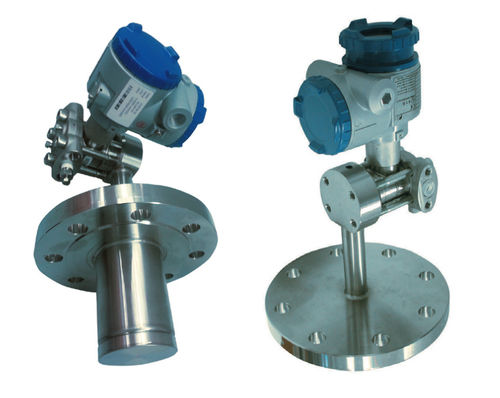

capacitive level transmitter / for liquids / stainless steel / 4-20 mA
FKE series

{{requestButtons}}

Characteristics

  • Technology:

    capacitive

  • Medium:

    for liquids

  • Other characteristics:

    stainless steel, 4-20 mA, explosion-proof, intrinsically safe, flange-mount, smart, HART, Modbus, NAMUR, PROFIBUS

  • Applications:

    for storage tanks

  • Process pressure:

    Max.: 100 bar (1,450.38 psi)

    Min.: 0 bar (0 psi)

  • Process temperature:

    Max.: 85 °C (185 °F)

    Min.: -40 °C (-40 °F)

Description

The FKE is a capacitance level transmitter for liquids, manufactured by Georgin S.A. It offers its SMART transmitter including 4-20 mA DC + HART protocol. This can operate with 10.5 to 45V DC power supply, burnout based on NAMUR NE43 recommendations and last long within 10 years.

This transmitter has 10 to 300.000 mmWC span limit, 100:1 rangeability and 0.165% accuracy. It is constructed with process wetted parts such as Inox 316L, Hastelloy, Monel and Tantalum.

It is made out of stainless steel with versions of intrinsically safe and explosion proof. This contains local analog or digital indicator and fieldbus foundation H1, Modbus or profibus PA.
