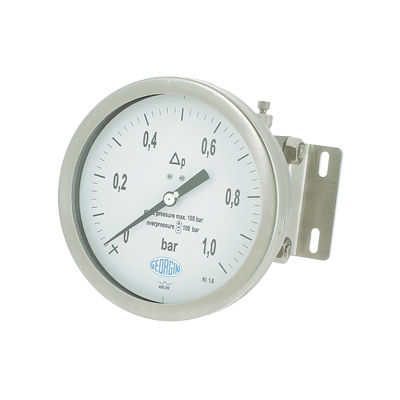

Differential pressure gauge M7000
dialstainless steeldiaphragm

differential pressure gauge
differential pressure gauge
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Display
dial
Material
stainless steel
Technology
diaphragm
Protection level
ATEX
Applications
process, for gas, for liquids
Other characteristics
glycerin-filled, adjustable, with diaphragm seal, double
Pressure

Max.: 40 bar (580.15 psi)

Min.: 0 bar (0 psi)

Process temperature

Max.: 100 °C (212 °F)

Min.: -25 °C (-13 °F)

Precision

1 %

Dial diameter

100 mm, 150 mm (3.9 in)

Description

Suitable for severe environments and corrosive gaseous or liquid media which will not obstruct the pressure entry. Version: differential pressure Static pressure: 100 bar Technology: 316L stainless steel double diaphragm Chambers filled with glycerine Diaphragm sealing ring: FPM (Viton) Bolts: stainless steel 304 Safety glass Options: » 1 or 2 electrical switches » ATEX version » Case filled with glycerine or silicon oil » 316 stainless steel case » Monel 400 (2.4360) pressure element » Oxygen cleaning » Bottom connection with front or back flange Uses Suitable for severe environments and corrosive gaseous or liquid media which will not obstruct the pressure entry. Technical data 2.5 (Monel 400 version) Overpressure safety Up to 100 bar when pressure applied at one side only Max. Static Pressure 100 bar Case 304 stainless steel Protection class IP 65 (according to EN60529 /IEC 529) Dial White aluminium Black letters and graduations 180 to 270° dial arc acc. to range Pointer Adjustable Black aluminium Window gasket Neoprene rubber Movement 304 stainless steel Pressure element Double diaphragm StSt 316L Silicon oil filling of element chamber FPM (Viton®) diaphragm sealing rings Stainless Steel 304 bolts Process connection 2x1/4’’ NPTF lower (standard) Temperature error +/- 0.6%/10°C de l’échelle
