analog pressure gauge / diaphragm / for gas / for liquids
M5050 series

Add to MyDirectIndustry favorites
Compare this product

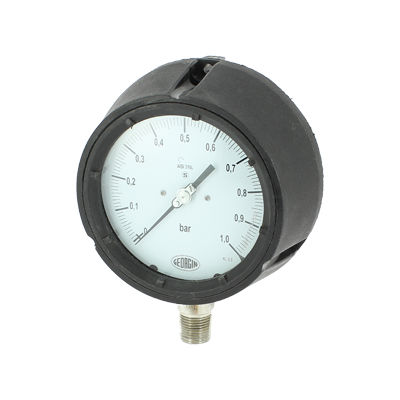

analog pressure gauge / diaphragm / for gas / for liquids analog pressure gauge / diaphragm / for gas / for liquids - M5050 series
{{requestButtons}}

Characteristics

  • Display:

    analog

  • Technology:

    diaphragm

  • Applications:

    process, for gas, for liquids

  • Other characteristics:

    threaded, stainless steel, glycerin-filled, with diaphragm seal

  • Pressure:

    Min.: -1 bar (-14.5 psi)

    Max.: 1,600 bar (23,206.04 psi)

Description

Suitable for severe environments and corrosive, gaseous or liquid media which will not obstruct the pressure entry.

Version: relative pressure
Ranges: -1..+1600 bar
Technology: 316L stainless steel manometric tube
Black polypropylene case: diameter 4’’1/2 mm
Safety glass

Options:
» Case filled with glycerine or silicon oil
» Oxygen cleaning
» Diaphragm seal or normalized flanged mounting

Uses

Suitable for severe environments and corrosive gaseous or liquid media which will not obstruct the pressure entry.

Technical data

Working pressure Continuous 100% FS
Temporary 130% : FS≤60bar
Temporary 115% : FS≥00bar
Case Black polypropylene, threaded
ring
Solid front (acc. to ANSI B40.1)
Protection class IP 65 (according to EN60529)
Window Safety glass
Dial White aluminium
Black letters and graduations
Pointer Adjustable
Black aluminium
Window gasket Neoprene rubber
Movement 304 stainless steel
Pressure element Bourdon tube
Material 316L stainless steel
Ambient T° -40°C...+65°C
Process T° +200°C maxi (not filled)
Process connection 316L stainless steel
½’’ BSPM or ½’’ NPTM
Connection location Bottom
Mounting Direct

Options

Filled case Glycerine (+15...+100°C)
Silicon oil (-45...100°C)
Flange Back
