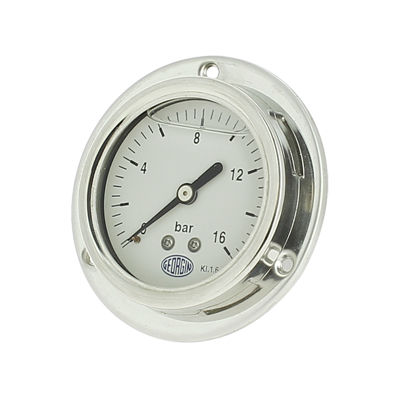

Analog pressure gauge M5010 seriesBourdon tubeprocessfor gas

analog pressure gauge
analog pressure gauge
Add to favorites
Compare this product
indicative price

Characteristics

Display
analog
Technology
Bourdon tube
Applications
process, for gas, for liquids
Other characteristics
stainless steel, brass, glycerin-filled, low-pressure, dial
Pressure

Max.: 1,000 bar (14,503.77 psi)

Min.: -1 bar (-14.5 psi)

Description

Suitable for low pressure, gaseous media which will not obstruct the pressure entry and severe environments. Version: relative pressure Ranges: -1..1000 bar Technology: Brass manometric tube 304 stainless steel case: diameter 63, 100 mm Window PMMA polycarbonate Case filled with glycerine Options: » Oxygen cleaning » Bottom or back connection with flange or U-clamp Uses Suitable for severe environments and non corrosive gaseous or liquid media which will not abstruct the pressure entry Working pressure steady 75% FS Fluctuating 66% FS Temporary 100% FS (Ø63) Temporary 130% FS (Ø100) Case 304 stainless steel – crimped ring Filled case Glycerine Blow out hole Rear (only for Ø100) Protection class IP 65 (according to EN60529) Window PMMA polycarbonate Dial Ø100 white aluminium Ø63 white plastic Black letters and graduations Pointer Ø100 black aluminium Ø63 black plastic Movement Brass Pressure element Bourdon tube Material Brass Ambient T° -20°C...+60°C Process T° +60°C maxi Process connection Brass Ø 63 ¼’’ BSPM or ¼’’ NPTM Ø 100 ½’’ BSPM or ½’’ NPTM Connection location Bottom or back Mounting Direct Panel – front flange Panel – U-clamp
