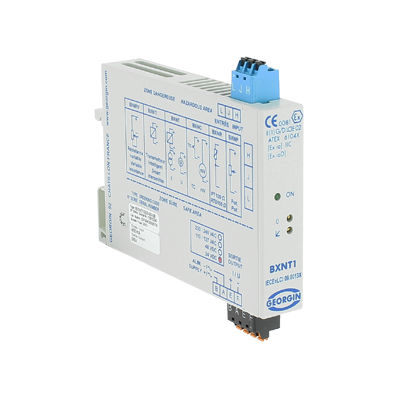

Analog signal converter BXNT(I)
transmitterDIN railgalvanically-isolated

analog signal converter
analog signal converter
Add to favorites
Compare this product


Characteristics

Signal type
analog
Associated function
transmitter
Other characteristics
DIN rail, galvanically-isolated, intrinsically safe

Description

This device is designed to interface and convert signals coming from the hazardous to the safe area. Input: Current (4/20mA - 0/20mA…), Voltage (0/5V - 0/10V…) or other on request Output: Current (4/20mA - 0/20mA…), Voltage (0/5V - 0/10V…) or other on request Supply: 24 VDC, 48 VDC, 110 VAC or 230 VAC Model: 1 channel Setting: Adjustment potentiometer for the source and the curve on the front green LED for presence of voltage Installation : Safe area Options: » Hart signal transparency with the barrier (BXNTI) » Screw terminals » ACCDIVBX power supply cables » Ex d enclosure - RTPE9-DIN or other Ex d enclosure EC Type examination certificate number : LCIE 02 ATEX 6104X IECEx conformity certificate : LCI 09.0013X ATEX/IECEx classification : II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]
