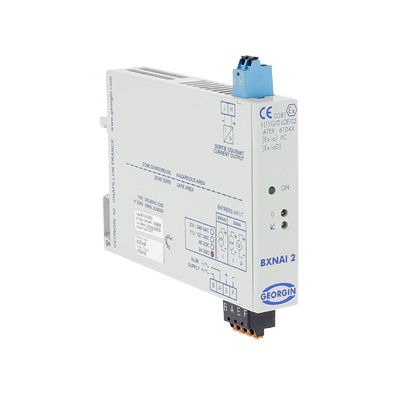

Analog signal converter BXNA(I)

analog signal converter
analog signal converter
Add to favorites
Compare this product


Signal type


This device is designed to interface and convert signals coming from the safe to the hazardous area. Input:Current (4/20mA - 0/20mA…), Voltage (0/5V - 0/10V…) or other on request Output: Current (4/20mA) Supply: 24 VDC, 48 VDC, 110 VAC or 230 VAC Model: 1 channel Setting: Adjustment potentiometer for the source and the curve on the front green LED for presence of voltage Installation : Safe area Options: » Hart signal transparency with the barrier (BXNAI) » Screw terminals » ACCDIVBX power supply cables » Ex d enclosure - RTPE9-DIN or other Ex d enclosure EC Type examination certificate number : LCIE 02 ATEX 6104X IECEx conformity certificate : LCI 09.0013X ATEX/IECEx classification : II (1) GD [Ex ia] IIC or [Ex ia] IIB or [Ex iaD]


No catalogs are available for this product.

See all of GEORGIN S.A.‘s catalogs
