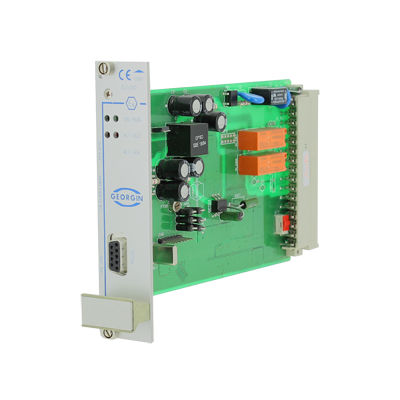

This card is designed to convert RTD100, thermocouples, potentiometer, mA, mV and other standardized current signals coming from the hazardous area to the safe area.
Output: up to 2 4/20mA outputs and 4programmable threshold depending on model
Supply: VAC ou VDC
Red LED for alarm state, and green LED for presence of voltage
Installation: Safe area progressX Manager for programming the type of input, relays state in case of fault, hysteresis and alarm temporisation, 4/20mA output
Possibility for line measurement and outputs simulation
» Hart signal transparency with the barrier
» RS232 programming cable and USB / RS232 converter
EC Type examination certificate number :
LCIE03 ATEX 6469X
ATEX classification :
II (1) GD [Ex ia] IIC ou [Ex ia] IIB ou [Ex iaD]
Smart converter for measuring process signals with programming through PC using ProgressXmanager Software (RS 232 connection).
Consumption ≤ 4VA
Frequency 48 to 62 Hz
Power supply 98 to 255 Vac
21 to 58 Vdc
(to be speci ed when ordering)
Front face green LED ON when energized
Input signal (from safe area) see codification
Transmitter 2/3/4 wires (4/20mA)
SMART Transmitter HART protocol
Current, Voltage, Potentiometer, RTD, Thermocouples
Output signal (to hazardous area)
Depending on options, 1 analog output and / or 2 or 4 alarm relays.
Input faults can be seen on the relays and on the output signal.
On front face, a RS 232 connector allows communication with P.C.
Response time ≤ 350 ms
Galvanic isolation between:
IS Input / Supply – NIS outputs 2500 Vac 50 Hz
Supply / NIS Output 1000 Vca 50Hz
