Flat gasket GT5000 O-ringlippedaluminum
Add to favorites
Compare this product
Characteristics
- Type
- flat, O-ring, lipped
- Material
- aluminum, silver, elastomer, silicone
- Configuration
- round, grooved, rectangular, tubular, profiled, U-shaped, X, D-shaped, L, tadpole, X-ring, C, V, T-shaped
- Application
- for high-temperature applications, shielding, electronic equipment, for aerospace applications, for electronic applications, rugged, EMC conduit, for aeronautical applications
- Other characteristics
- high-temperature, conductive, custom-made, molded, extruded, vulcanized
- Temperature limit
Min.: -55 °C
(-67 °F)Max.: 160 °C
(320 °F)- Shore A hardness
65 unit
Description

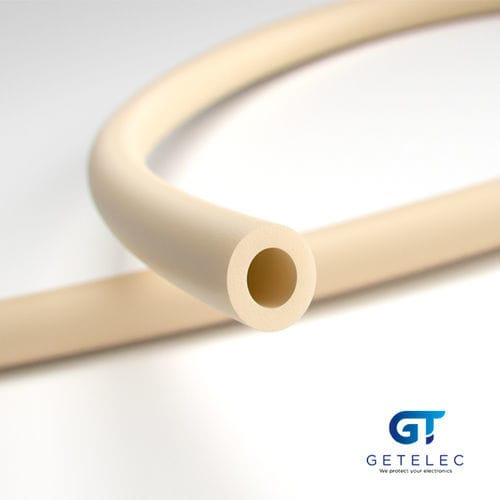

GT500 is an EMC conductive gasket developed from a silver-plated aluminum filled conductive silicone.
GT5000 offers a low density, and excellent high-frequency performance
Forming options: Custom molded, die-cut, extruded, sheeted, or vulcanized.
Technical data for the GT500 conductive EMC gasket:
Volume resistivity (ohm.cm) = <0.0054
Hardness (Shore A) = 65
Density (g/cm3) = 1.90
Break resistance (Mpa) = 1.89
Tear resistance (N/mm) = 8.43
Continuous operating temperature (°C) = -55°C to +160°C
Learn more about our conductive elastomer range:
Getelec develops and manufactures conductive EMC solutions based on silicone and fluorosilicone filled with conductive particles such as silver-plated copper, silver, silver-plated nickel, graphite nickel, aluminum nickel, silver-plated aluminum, treated aluminum, carbon, or silver-plated glass beads to ensure optimal galvanic and electromagnetic compatibility.
This expertise allows us to define the ideal material based on your equipment and specifications, in order to offer you a customized conductive solution tailored to your needs.
Three guarantees for our conductive silicone EMC gaskets:
Electrical continuity performance
Mechanical performance
Extreme temperature resistance
