Graphite gasket GT2024carboncopperaluminum
Add to favorites
Compare this product
Characteristics
- Material
- graphite, carbon, copper, aluminum, silver, elastomer, silicone
- Application
- EMC shielding, glass
- Other characteristics
- conductive, mechanical, custom-made, molded, vulcanized, extruded, die-cut
Description

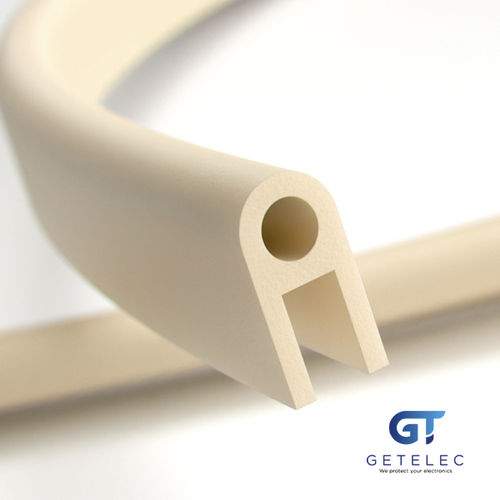

GT2024 is an EMC conductive gasket developed from a pure silver filled conductive silicone.
Thanks to its MIL G 83528 Type E certification, GT2024 is suitable for applications in the a defense industry.
GT2024 offers very low volume resistivity and great resistance at high temperature (peak at 200°C)
Forming options: Custom molded, die-cut, extruded, sheeted, or vulcanized.
Technical data for the GT2024 conductive EMC gasket:
Volume resistivity (ohm.cm) = <0.0016
Hardness (Shore A) = 69
Density (g/cm3) = 3.80
Break resistance (Mpa) = 2.64
Tear resistance (N/mm) = 16.28
Continuous operating temperature (°C) = -55°C to +160°C (peak at 200°C)
Learn more about our conductive elastomer range:
Getelec develops and manufactures conductive EMC solutions based on silicone and fluorosilicone filled with conductive particles such as silver-plated copper, silver, silver-plated nickel, graphite nickel, aluminum nickel, silver-plated aluminum, treated aluminum, carbon, or silver-plated glass beads to ensure optimal galvanic and electromagnetic compatibility.
This expertise allows us to define the ideal material based on your equipment and specifications, in order to offer you a customized conductive solution tailored to your needs.
Three guarantees for our conductive silicone EMC gaskets:
Electrical continuity performance
Mechanical performance
Extreme temperature resistance
