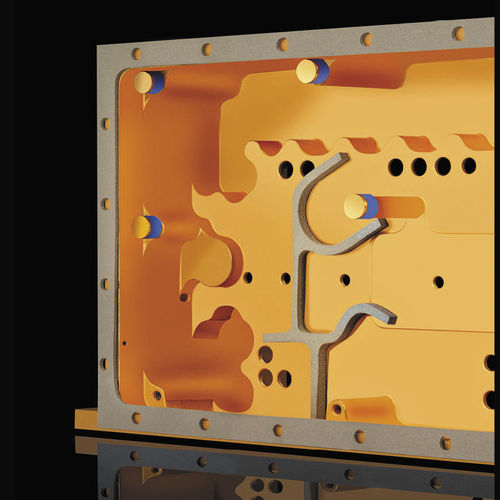

Flat gasket GT5000FLEX

shieldingEMC shieldingEMC conduit

GT15000 FLEX is an EMC conductive gasket developed from a silver-plated aluminum filled conductive silicone. Thanks to its ESA-ECSS-Q-ST-70-02C and MIL G 83528 Type C certifications, GT5000FLEX is suitable for applications in the aerospace and defense sectors. GT5000 FLEX offers good EMP resistance, low outgassing, electrical and thermal conductivity, and very high stability over time. Forming options: Custom molded, die-cut, extruded, sheeted, or vulcanized. Technical data for the GT5000 FLEX conductive EMC gasket: Volume resistivity (ohm.cm) = <0.0040 Hardness (Shore A) = 30 Density (g/cm3) = 1.67 Break resistance (Mpa) = 260 Tear resistance (N/mm) = 2.01 Continuous operating temperature (°C) = -55°C to +160°C Learn more about our conductive elastomer range: Getelec develops and manufactures conductive EMC solutions based on silicone and fluorosilicone filled with conductive particles such as silver-plated copper, silver, silver-plated nickel, graphite nickel, aluminum nickel, silver-plated aluminum, treated aluminum, carbon, or silver-plated glass beads to ensure optimal galvanic and electromagnetic compatibility. This expertise allows us to define the ideal material based on your equipment and specifications, in order to offer you a customized conductive solution tailored to your needs.
