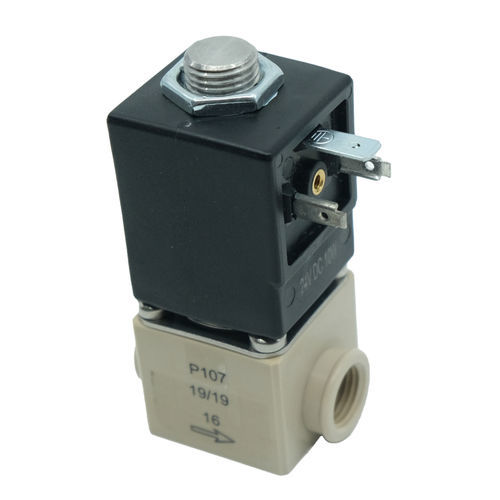

Media separated solenoid valve P107direct-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, for gas, for food, for vacuum
- Body
- PEEK, with sub-base, IP65
- Process connection
- G 1/4
- Other characteristics
- low power consumption, media separated, for aggressive media
- DN
4 mm
(0.157 in)- Voltage
12 V, 24 V
- Temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 8 bar
(116 psi)
Description
Instrumentation
Bio-tech
Medical
Dental Dialyses
Industrial
Automation Chemistry Process
Specifications
Pitch size [mm]
32
Flow factor kv [l/min]
up to 6.5
Power consumption [W]
10 to 14
Material in contact with media - Seals
FPM, EPDM
Temperature range - Storage [°C]
-10 to +70
Temperature range - Ambient [°C]
0 to +50
Internal leakage [ml/min]
<0.1
External leakage [ml/min]
<0.1
Response time [ms]
<30
Max cycle rate [Hz]
10
Life expectancy [Cycles]
3 million (typical)
Electrical connection [mm]
DIN 43650, EN 175301-803, ISO 4400 Form A
