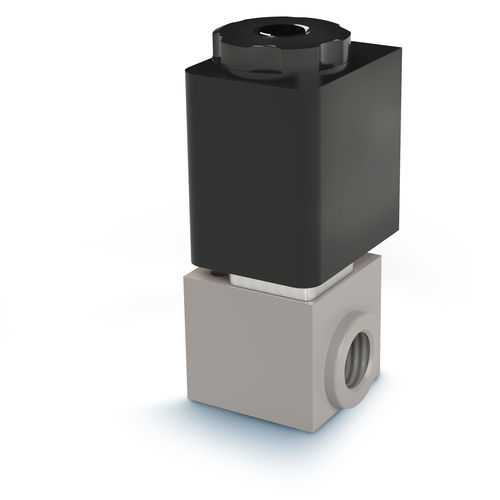

Media separated solenoid valve P7159

direct-operated2-wayNC

Versatile general purpose media separated solenoid valve. Instrumentation Bio-tech Blood analyzer Gas analyzer Agriculture Industrial Automation Chemistry Medical Devices Specifications Pitch size [mm] 22 Flow factor kv [l/min] up to 4 Pressure range [bar] -1 up to 8 Power consumption [W] 6.5 Seal FPM, EPDM Material in contact with media - Base PEEK or Stainless Steel or Brass Material in contact with media - Seals FPM or EPDM Temperature range - Storage [°C] -10 to +70 Temperature range - Ambient [°C] 0 to +50 Internal leakage [ml/min] <0.1 External leakage [ml/min] <0.1 Response time [ms] 20 Max cycle rate [Hz] 10 Electrical connection [mm] DIN 43650 Form B, DIN 43650, EN 175301-803
