Compression force sensor G8R-CP

digitalanalogweighing

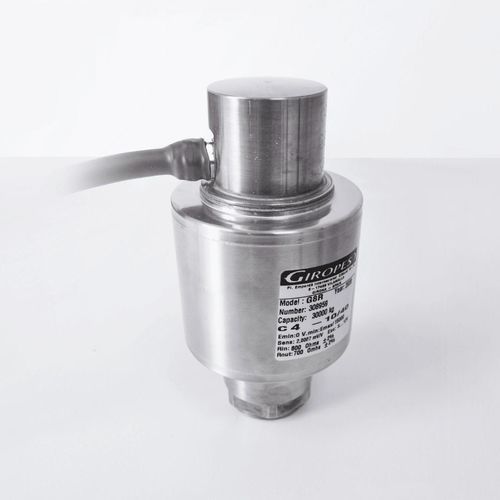

The G8R-CP is a hexagonal compression load cell designed for high-capacity industrial weighing applications such as weighbridges and truck scales, available in analog (G8RCP) and digital (G8RCP D) versions with a flat stainless-steel construction for enhanced stability.

Highlights

• Hexagonal compression geometry for precise high-capacity measurement.
• Available as analog (G8RCP) and digital (G8RCP D).
• Flat stainless-steel design reduces movement and increases stability.
• Suitable for weighbridges, truck scales, silos, hoppers and other high-capacity installations.

Installation options

• With notch (standard mounting).
• With beam sensor (optional).

Nominal loads and technical table

• 18 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 20 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 25 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 30 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 35 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 40 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M
• 50 t — Class of precision: C4 (OIML) — y = emax / vmin: 15000 — Material: Stainless steel — IP Protection: IP69K — Legal metrology: M

Characteristics / technical specifications

• Model family: G8R-CP (G8RCP analog / G8RCP D digital).
• Capacities available: 18 t, 20 t, 25 t, 30 t, 35 t, 40 t, 50 t.
• OIML accuracy class: C4.
• y = emax / vmin: 15000.
• Construction material: Stainless steel.
• Ingress protection: IP69K.
• Compatible with legal metrology (designation: M on product sheet).
• Primary applications: weighbridges, truck scales, high-capacity silos and hoppers, industrial installations.
• Design features: hexagonal compression geometry, flat structure for enhanced stability; optional beam sensor integration.
