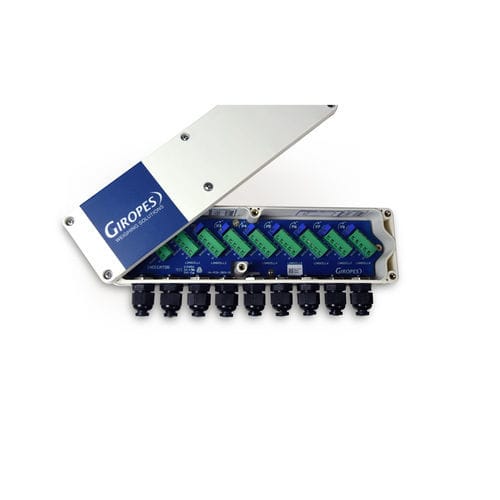

Wall-mounted junction box GBOX8

IP66ABSfor load cells

Overview
The GBOX8 is a junction box designed and manufactured by Giropes to supply and receive signals from analog load cells, stabilizing measurement data to ensure reliable weight readings in industrial weighing systems.

Key features

• Provides power and receives signals from up to 8 analog load cells.
• Signal stabilization and conditioning for consistent weight readings.
• ABS enclosure providing mechanical protection.
• IP66 ingress protection when installed with correct cable glands.
• PG9 cable glands suitable for armoured cables.
• Designed and manufactured by Giropes for compatibility with Giropes weighing components.

Technical specifications

• Function: Junction box for analog load cells (signal distribution and conditioning).
• Model: GBOX8.
• Maximum supported load cells: up to 8.
• Enclosure material: ABS.
• Ingress protection: IP66 (with correct cable gland installation).
• Cable glands: PG9 (suitable for armoured cables).
• Signal type: Analog load cells.
• Manufacturer: Giropes.

Compatibility and installation

• Integrates with Giropes-designed weighing systems to ensure component compatibility.
• Recommended for industrial weighing installations; ensure proper cable gland selection and tightening to maintain IP66.
• PG9 glands permit use of armoured cables for reinforced installations.

Manufacturer

• Giropes — designed and manufactured by Giropes. Documentation available: GBOX8 documentation (PDF).
