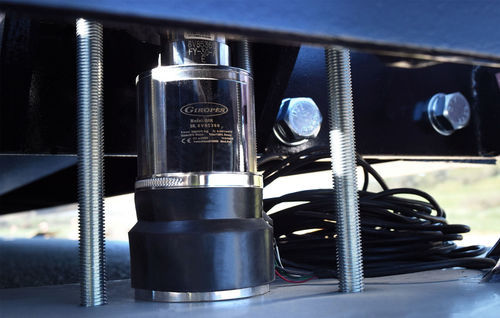

Compression load cell G8R

beam typefor weighbridgeshigh-precision

The G8R is a high-capacity compression load cell from Giropes, engineered for weighbridges and truck scales. Manufactured in stainless steel with IP69K protection, it suits heavy-duty industrial installations requiring frequent high-pressure cleaning and stable, repeatable weighing.

Key applications

• Primary use: weighbridges and truck scales.
• Possible under-beam installation for certain weighbridge designs.
• High-capacity industrial installations: silos, hoppers and large tanks.

Installation options

• With notch (standard mounting option).
• Under-beam mounting (optional for some models).
• Compatibility with beam sensors and mounting accessories (optional).

Features

• Designed for high mechanical capacity and precise heavy-duty weighing.
• Stainless steel construction for corrosion resistance.
• IP69K rating for protection against high-pressure and high-temperature washdown.
• Available accessories and shielded versions to suit different weighbridge constructions.
• Verifiable legal metrology option: M.

Technical specifications

• 18 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 20 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 25 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 30 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 35 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 40 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M
• 50 t — Class C4 — y = 15000 — Material: stainless steel — IP: 69k — Legal metrology: M

Documentation

• Individual G8R data sheet (PDF) available from Giropes.
