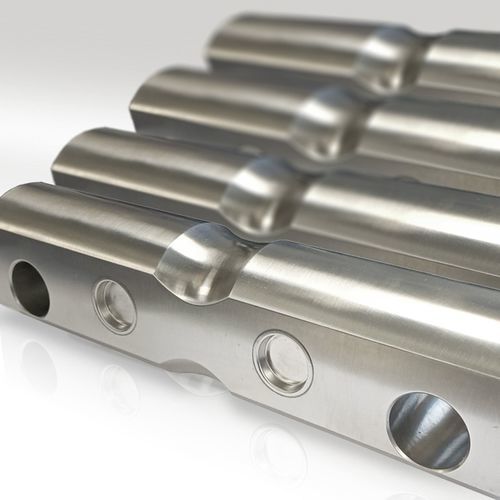

Compression load cell GTI

beam typeweighingfor hopper

The GTI is a heavy-duty compression load cell designed for high-capacity weighing applications such as silos, hoppers and tanks, as well as for test benches and verification presses. It combines legal-metrology approval and hermetic protection to deliver accurate results in demanding industrial environments.

Main features

• OIML R60 approval — 3000 divisions (Class C) for applicable capacities.
• Hermetically sealed design with laser-welded sealing, providing IP68 protection for high-humidity or harsh environments.
• Stainless steel construction for corrosion resistance.
• Available nominal capacities: 5, 10, 20, 30, 50, 75, 100 t; e = emax / vmin = 10000.
• Suitable for installations requiring vibration absorption and anti lift-off solutions.
• Available mounting kits and silent-block anti-vibration assemblies for silo/hopper integration.
• Professional calibration and verification services available to ensure metrological compliance.

Applications

• Silo, hopper and tank weighing (bulk materials and liquids).
• Test benches and verification/inspection presses.
• Industrial high-capacity weighing installations requiring legal-metrology compliance.

Accessories and installation

• Mounting kits for silo and hopper installations, including lift-off prevention accessories.
• Silent-blocks and vibration-damping assemblies for improved measurement stability.
• Complete assembly kits available for full integration into weighing systems.

Technical specifications

• Model: GTI
• Brand: Giropes
• Nominal capacities (t): 5, 10, 20, 30, 50, 75, 100
• Accuracy class (OIML R60): 3000 divisions (Class C)
• e = emax / vmin: 10000
• Material: Stainless steel
• Protection rating: IP68 (laser-welded hermetic sealing)
• Legal metrology: designation M for capacities 5–75 t; no legal-metrology designation indicated for 100 t
• Typical applications: silo/hopper/tank weighing, test benches and verification presses
• Available accessories: mounting kit (lift-off prevention), silent-block anti-vibration assemblies, complete assembly kits
