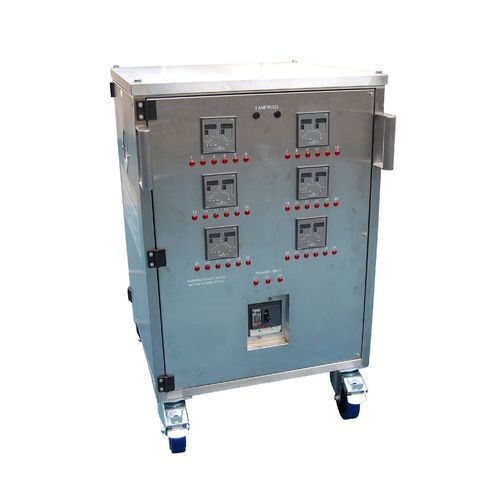

Laboratory automation heating unit GHT1238SS

industrialmulti-zone

Product overview
50 kVA mobile heat treatment unit providing 36 controlled output channels with 6 built-in P183 programmers. Housed in a stainless steel casing, the unit is intended for controlled heat processing and temperature profiling tasks where multiple independent channels and recorder interfaces are required.

Key features

• 6 x P183 programmers integrated
• 36 channel neon indicators to show channel output status
• Moulded case circuit breaker (MCCB) for circuit protection
• 36 x 60 A panel-mounted twistlock output sockets
• 36 x Type K thermocouple panel-mounted input sockets
• 36 x Type K thermocouple panel-mounted output sockets for external recorder connection
• 3 x 110 V auxiliary sockets for powering external recorders and recharging thermocouple attachment units
• Secondary output voltage: 65 V a.c.
• Frequency: 50/60 Hz
• Capacity to run 36 x 30 V, 1.35 kW ceramic heating elements
• 36 x single-pole 100 A contactors (UK manufactured)

Technical specifications

• Power rating: 50 kVA
• Channels: 36 independent outputs with neon indicators
• Programmers: 6 x P183
• Circuit protection: Moulded case circuit breaker (MCCB)
• Output sockets: 36 x 60 A panel-mounted twistlock
• Thermocouple inputs/outputs: 36 x Type K panel-mounted input and output sockets
• Auxiliary power: 3 x 110 V sockets for recorders and charging
• Secondary output voltage: 65 V a.c.
• Frequency: 50/60 Hz
• Element capacity: up to 36 x 30 V, 1.35 kW ceramic heating elements
• Contactors: 36 x single pole 100 A (UK manufactured)

Typical applications

• On-site heat treatment and temperature cycling of components
• Industrial annealing and thermal conditioning requiring multiple independent channels
• Temperature profiling with external recorders via Type K thermocouple outputs
• Laboratory or production test setups using ceramic heating elements
