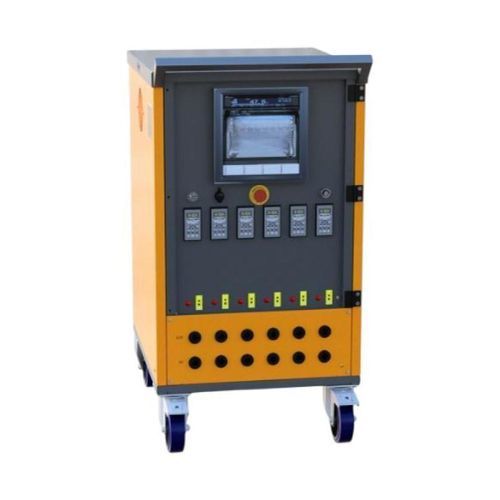

Industrial heating unit GHT50HTC

multi-zone

Product
50 kVA mobile heat treatment centre with 6 independent channels for on-site heat treatment and tempering

Product code
GHT50HTC

Features

• Adv3 linkable temperature programmer on each channel for multi-zone control
• AH4000 12-point Chino digital temperature recorder for process documentation
• Primary voltage: 3~ 380/415/440 V
• Secondary output: 0–65 V
• 2 × 110 V auxiliary sockets for instrumentation
• Capacity to power up to 18 × 2.7 kW ceramic heater elements (60 V)
• Supplied packed in an OSB board case for transport

Technical specifications

• Model / Product code: GHT50HTC
• Apparent power: 50 kVA
• Channels: 6 independent channels
• Temperature programmer: Adv3 (linkable) on each channel
• Recorder: AH4000 12-point Chino digital temperature recorder
• Primary voltage: 3~ 380/415/440 V
• Secondary output: 0–65 V
• Auxiliary sockets: 2 × 110 V
• Heater capacity: supports up to 18 × 2.7 kW ceramic heater elements (60 V)
• Shipping: packed in OSB board case
