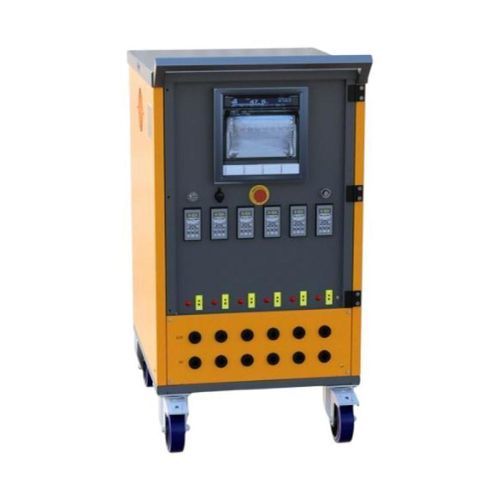

Industrial heating unit GHT70HTC

Product name
Mobile Heat Treatment Centre GHT70HTC 70 kVA 6-channel

Product code
GHT70HTC

Key features

• Adv3 linkable temperature programmer on each channel
• AH4000 12‑point Chino digital temperature recorder
• Primary voltage: 3~ 380/415/440 V
• Secondary output: 0/65 V
• 2 × 110 V auxiliary sockets
• Capacity to power 24 × 2.7 kW / 60 V ceramic heater elements
• Supplied in OSB board case for shipping

Description
Mobile heat treatment centre with six independently controlled channels. Each channel features an Adv3 linkable temperature programmer and digital recording via the AH4000, enabling linked or individual cycles for complex thermal processes. The unit supplies secondary output up to 65 V and can power multiple ceramic heater elements while providing auxiliary 110 V sockets for accessories. Packaged in an OSB board case for secure transport.

Technical specifications

• Model family: Mobile Heat Treatment Centre
• Channels: 6 independent channels
• Programmer: Adv3 linkable on each channel
• Recorder: AH4000 12‑point Chino digital temperature recorder
• Primary voltage: 3~ 380/415/440 V
• Secondary output: 0/65 V
• Auxiliary sockets: 2 × 110 V
• Heater capacity: supports 24 × 2.7 kW (60 V) ceramic heater elements
• Shipping: OSB board case
