Off-grid DC/AC inverter GHT1232with power supply48-voltfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- off-grid, with power supply
- Electrical characteristics
- 48-volt
- Applications
- for industrial applications
- Other characteristics
- compact, portable
- Power
10,500 W
- Output voltage
Max.: 60 V
Min.: 30 V
Description
Product description

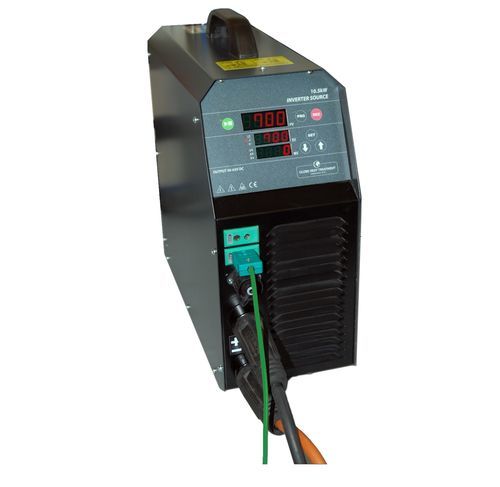

Globe Inverter power source GHT1232 is a 10.5 kW portable inverter heat-treatment power source designed to power and control standard 60V, 48V or 30V heating elements depending on the selected maximum output voltage. The unit provides precise control for post-weld heat treatment and preheating operations and is engineered for ease of transport and use in confined work areas.
Application
Intended for post-weld heat treatment (PWHT) and preheating of pipe welds and welded fabrications where a single control zone is required. For multi-zone heat treatment, up to eight additional units can be linked to provide coordinated control across multiple zones. Compact dimensions and a 17 kg weight make the unit suitable for sites with limited access and for smaller-scale jobs.
Key features / Technical specifications
Globe Inverter power source GHT1232 is a 10.5 kW portable inverter heat-treatment power source designed to power and control standard 60V, 48V or 30V heating elements depending on the selected maximum output voltage. The unit provides precise control for post-weld heat treatment and preheating operations and is engineered for ease of transport and use in confined work areas.
Application
Intended for post-weld heat treatment (PWHT) and preheating of pipe welds and welded fabrications where a single control zone is required. For multi-zone heat treatment, up to eight additional units can be linked to provide coordinated control across multiple zones. Compact dimensions and a 17 kg weight make the unit suitable for sites with limited access and for smaller-scale jobs.
Key features / Technical specifications
- Type: Portable inverter heat treatment power source
- Rated output: 10.5 kW
- Compatible heating element voltages: 60 V, 48 V or 30 V (dependent on selected maximum output voltage)
- Control zones: single control zone per unit; up to 8 additional units can be linked for multiple zones
- Weight: 17 kg (lightweight for portability and restricted-access sites)
- Typical uses: post-weld heat treatment, preheating of pipe welds and welded fabrications
- Product code / group: GHT1232
