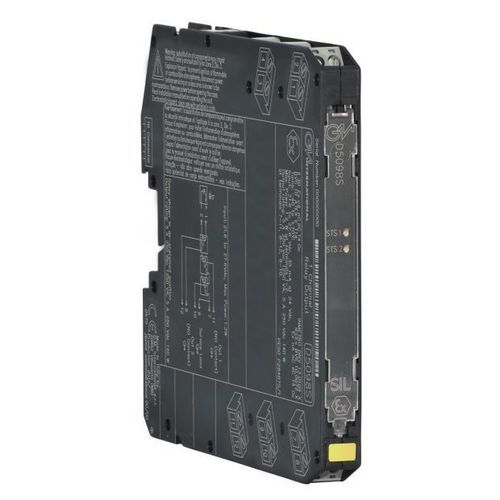

AC relay module D5098S

switchingsafetyDIN rail mounted

SIL3 Relay Out Module for 5 A NE LoadsThe D5098 is a relay module suitable for switching safety related circuits, up to SIL 3 level, for high risk industries. It provides isolation between input and output contacts. It makes available NO contacts for up to two Normally Energized (NE) loads and NC contacts for service purpose. A wide compatibility towards different DCS/PLC is guaranteed: driving pulse testing is permitted by a dedicated internal circuit, which prevents contact and LED flickering.SIL 3 / SC 3 for NE loads with NE driverInstallation in Zone 2Up to 5 A functional / 6 A inrush currentCompatible with DCS/PLC pulse testingService contact availableInput/Output isolationTechnical Specifications:Input:Type: 24 Vdc nom (21.6 to 27.6 Vdc), reverse polarity protected. Relay coils are internally protected with suppressor diodes.Current Consumption: 45 mA @ 24 Vdc, typicalPower Dissipation: 1.1 W (D5098D), @ 24 Vdc, typical.Output:Type: 1 voltage free SPDT relay contact identified with outputs: Out 1 (NO contact) terminals 7-8 and Service Load Out 1 (NC contact) terminals 7-11; 1 voltage free SPDT relay contact identified with outputs Out 2 (NO contact) terminals 9-10 and Service Load Out 2 (NC contact) terminals 9-12 (only for D5098D). Terminals 7-8 (Out 1) and 9-10 (Out 2, only for D5098D) are open when relay is de-energized, closed in energized relay condition. Service load outputs (not SIL) at terminals 7-11 and 9-12 (only for D5098D) are normally closed when relay is de-energized, open in energized relay condition.Contact material: Ag Alloy (Cd free), gold plated.Contact rating: 5 A 250 Vac 1250 VA, 5 A 250 Vdc 140 W (resistive load).Contact min. switching current: 1 mA.Contact inrush current: 6 A @ 24 Vdc, 250 Vac.DC and AC load breaking capacity: refer to Instruction Manual.Contact current derating: refer to Instruction Manual.Mechanical / electrical life: 5 * 10⁶ / 3 * 10⁴ operation, typical.Operate / release time: 30 ms / 20 ms, typical.Isolation:Test Voltage: Output/Input 1.5 kV; Input/Input 500 V; Output/Output 1.5 kV.Environmental conditions:Operating temperature: –40 to +70 °C.Storage temperature: -45 to +80 °C.Mounting:Type: DIN-Rail 35 mm, or on custom Term. Board.Weight: about 110 gConnection: by polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm.Channels: 1Status: ACTIVE
