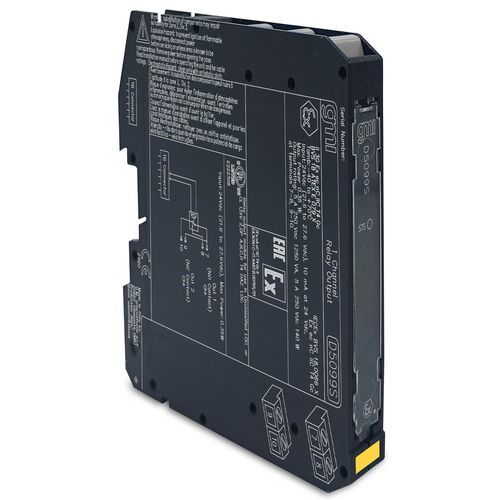

DC relay module D5099S

ACactivationswitching

The D5099S is a relay module that provides a Single Pole Double Throw (SPDT) contact isolated from the input. It is designed for use with 5 A loads and is suitable for installation in Zone 2/Div. 2 hazardous areas. Compatibility with specific DO cards with pulse testing should be verified. - Installation in Zone 2/Div. 2 - Up to 5 A functional / 6 A inrush current - Both NO (Normally Open) and NC (Normally Closed) contacts available - Low activation coil current (< 10 mA) - Input/Output isolation Input: - Type: 24 Vdc nominal (21.6 to 27.6 Vdc). Relay coils are internally protected with suppressor diodes. - Current Consumption: 10 mA @ 24 Vdc, typical. - Power Dissipation: 0.24 W @ 24 Vdc, typical. Output: - Type: Voltage-free SPDT relay contact: NO contact at terminals 7-8 and NC contact at terminals 9-10. Terminals 7-8 (NO) are open when relay is de-energized, closed when energized. Terminals 9-10 (NC) are closed when relay is de-energized, open when energized. - Contact material: Ag Alloy (Cd free), gold plated. - Contact rating: 5 A 250 Vac 1250 VA, 5 A 250 Vdc 140 W (resistive load). - Contact min. switching current: 1 mA. - Contact inrush current: 6 A @ 24 Vdc, 250 Vac. - DC and AC load breaking capacity: Refer to Instruction Manual. - Mechanical / electrical life: 5 × 10⁶ / 3 × 10⁴ operations, typical. - Operate / release time: 6 ms / 12 ms, including contact bounce time, typical. Isolation: - Test Voltage: Output/Input 1.5 kV. Environmental conditions: - Operating temperature: –40 to +70 °C. - Storage temperature: –45 to +80 °C. Mounting: - Type: On custom Terminal Board. - Weight: About 100 g. - Connection: By polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG). - Dimensions: Width 12.5 mm, Depth 123 mm, Height 120 mm. Status: ACTIVE Channels: 1 Technical Specifications / Features: - Relay Out Module for 5 A Loads - SPDT contact isolated from input - Zone 2/Div. 2 installation - Up to 5 A functional, 6 A inrush current - NO and NC contacts available - Low coil current (<10 mA) - Input/Output isolation - Operating temperature: –40 to +70 °C - Dimensions: 12.5 x 123 x 120 mm - Weight: ~100 g
