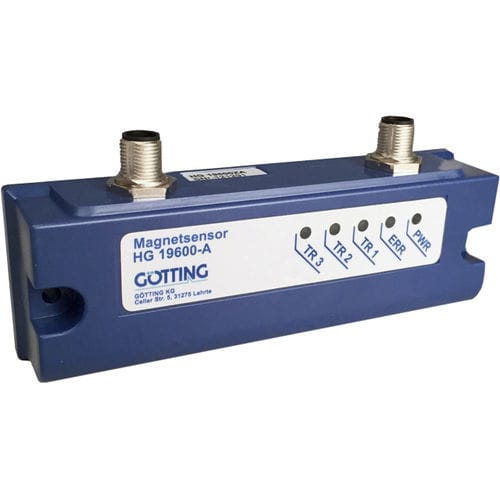

Magnetic sensor HG G-19600

For the track guidance of Automated Guided Vehicles (AGV) along magnetic tape. Overview Digital Magnetometer Technology For axially polarized magnet tapes Nominal reading height 60 mm Three independent systems for the detection of turnoffs Track selection via digital inputs Analog outputs: Flux density Z (0 to 10 VDC), flux density X (-10 to +10 VDC) Digital output: Magnet tape detected within reading area (Detect, +24 VDC) Display of operating status via 5 LEDs Functional Description The magnet sensor HG G-19600ZA detects the magnetic field above a magnetic tape in horizontal and vertical direction and continuously calculates the actual deviation diagonally to the direction of travel. The deviation is then output as an analog voltage. The sensor is based on digital magnetometer technology for the detection of the magnetic field above the magnetic tape. This technology is robust and maintenance free. The magnetic tape is easy to install and unaffected by dirt. The sensor contains three independent detection systems. It can thus detect junctions (second track) and follow turnoffs. Via the two digital inputs DIN1 and DIN2 one of max. two tracks underneath the sensor is dynamically selected. Five LEDs show the operating state (PWR), errors (ERR) and a track underneath the individual systems (TR1, TR2, TR3). The detection range depends on the reading height (mounting position of the sensor) and the type of the magnetic tape. As shown in the image above the sensor uses the magnetic flux density to calculate the deviation X of the center of the track. The higher the deviation the higher the voltage generated in the sensor
