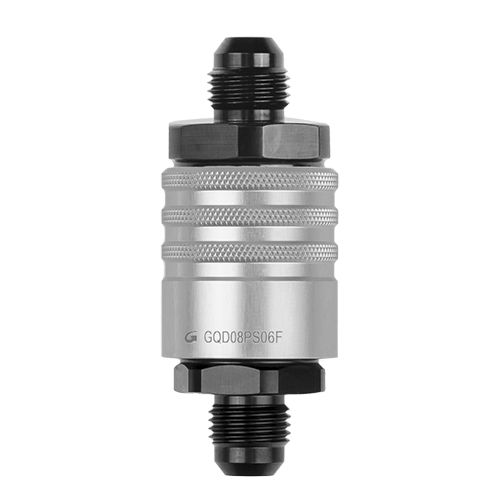

Fuel fitting GQD08PC06F

ringquicksocket

Goodridge G-Link quick disconnect couplings (otherwise known as dry-breaks) are a lightweight coupling that can be disconnected and reconnected in seconds, without the need to re-bleed the system. G-Link couplings are designed for use with brake lines, fuel lines, oil lines and pneumatics. There are two types of G-Link available, ‘bayonet’ and ‘pull type’, both with a range of seals to suit different applications. These pull type couplings use a locking mechanism designed for single handed operation, a ‘pull’ of the outer sleeve will couple/uncouple the G-Link with no separate actuation required for operation. To verify the correct connection, the female half is equipped with a green indicator ring. The indicator ring can alternatively be replaced by a retaining clamp. (This can only be attached when the halves are coupled and eliminates the risk of unintentional coupling). Additionally, the whole operating mechanism is O-ring sealed to achieve particular suitability for rough conditions and to reduce environmental effects. Both halves, plug and socket, are equipped with self-acting valves to stop fluid loss and air ingress. The pull type can hold pressure up to 150 bar (AN-06 & AN-08) & 100 bar (AN-12). Available in JIC/UNF AN-06, AN-08 & AN-12 thread fitments. Additionally pull type dry break couplings can be used as a security shut-off device, e.g. for fuel lines. For this purpose one half of the coupling is equipped with a lanyard to separate the halves in case of an accident (see available LANYARD options on separate page)
