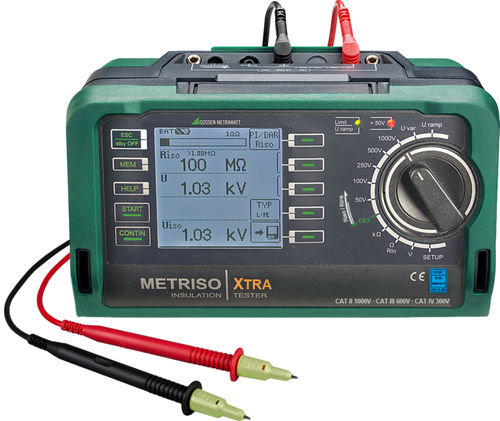

Insulation tester METRISO XTRA

voltagelow-resistancecabling

Test Instrument for Insulation, Low-resistance and Voltage Measurements - with Memory Compact and rugged - for service calls under harsh conditions and laboratory use The METRISO XTRA insulation and resistance measuring instruments allow for quick and effective testing of protective measures in accordance with: • DIN VDE 0100 • ÖVE-EN 1 (Austria) • SEV 1000 (Switzerland) • and regulations specific to other countries as well Insulation measurement per EN 61557-2 / VDE 0413 part 2 Low-resistance measurement per EN 61557-4 / VDE 0413 part 4 Voltage testing and measurement up to 1000 V The insulation measuring instruments are suitable for the following tasks: • Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V • Testing of the resistance of earthing conductors, protective conductors and equipotential bonding • Checking of test objects for absence of voltage • Testing of electrostatic discharge capacity at floor coverings (using shielded measurement cables) - EN 1081 • With the so-called 1 mA test per DIN VDE 0845/EN 61645, the instrument also allows to perform on-site tests of the response voltage of overvoltage components (varistors, Zener diodes, etc.) of requirement categories B and C / SPD Type 2 and 3) and to evaluate the test results in accordance with manufacturer‘s data.
