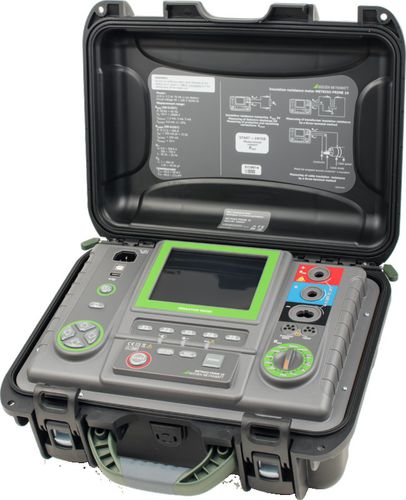

Voltage tester METRISO PRIME 10
insulationlow-resistance

voltage tester
voltage tester
voltage tester
voltage tester
voltage tester
Add to favorites
Compare this product


Characteristics

Test type
voltage, insulation, low-resistance

Description

High-Precision Insulation, Low-Resistance and Voltage Measuring Instrument for up to 40 TΩ with 10 kV Test Voltage. The METRISO PRIME 10 insulation tester has been developed for the detection of insulation damage and for protection against electric shock in electrical power supply networks. It measures resistance up to 40 TΩ with a test voltage of 10 kV in accordance with EN 61557-2. Even in the case of high-frequency interference, absolutely precise measurement results are obtained. Faults can be quickly and easily pinpointed by means of localization with the new “pulse control” function. Insulation measurements such as PI, DAR, DD, stepped testing (SV), capacitance measurement, temperature measurement and measurement of protective conductor continuity are no problem. These measurement results can be graphically represented at the display immediately. Highlights: - Insulation measurement up to 40 TΩ with 10 kV test voltage in accordance with EN 61557-2 / VDE 0413-2 - Test voltages in fixed steps of 50, 100, 250, 500, 1000, 2500, 5000 and 10,000 V - Measurement with incrementally rising voltage - Measurement of polarization index PI and absorption ratio DAR - Measurement with shielded measurement cable - Protection against voltage conducting objects - Variable adjustment of limit values - Digital filter for stabilizing measured values - Creation of R/I or R/U diagrams - Low-resistance measurement per EN 61557-4 / VDE 0413-4 - Continuity testing of protective conductors and equipotential bonding connections with a test current of ±200 mA - Storage of test results - Rugged IP 67 hard case - Measuring category: CAT III 1000 V / CAT IV 600 V
