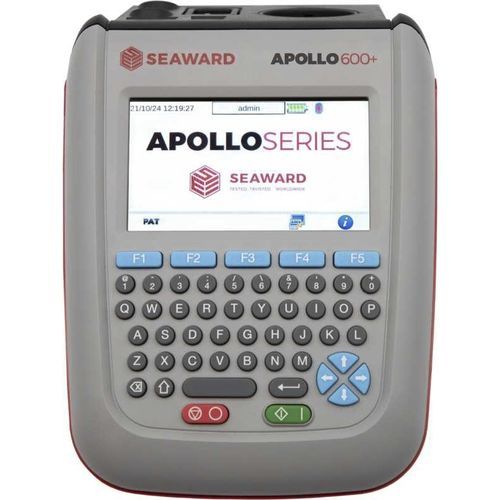

Electrical appliance tester Apollo 600+

continuityresistanceinsulation resistance

Test instrument for Testing per EN50678 / EN 50699 (DIN VDE 0701 / DIN VDE 0702) The Seaward Apollo 600+ is equipped with an earthing contact plug and an earthing contact test socket. The comprehensive test instrument has a German-language user menu. The Apollo 600+ features an integrated camera for photo documentation, a USB port for data transfer and an extensive range of test functions for testing portable equipment with user-configurable test sequences. The Apollo 600+ offers sufficient memory capacity for up to 50,000 test objects. Product Highlights : • Color graphic display • Integrated rechargeable battery (for passive tests and backup) • Integrated camera for photo documentation • Customizable sequences for device testing (up to 100 sequences can be stored) • Bidirectional data transmission by means of PATGuard3 Elite • 2 probe tests for permanently installed devices are possible (RPE and RISO) • Integrated data storage for up to 50,000 objects Technical characteristics • Protective conductor resistance measurement with 200 mA DC • Insulation resistance measurement (500/250 V) • Leakage current measurement • Direct method, differential current method, alternative method: protective conductor current, touch current • Continuity testing for cold appliance cables and extension cords (single-phase) • PRCD time to trip (30 mA 1xI∆N and 5xI∆N) • Protection class I per EN 61140 • Measuring category: 300 V CAT II
